YO H2O
LoRaWAN BLE
Enclosure type • IP54
Frequency • EU868, US915, AU915, AS923
Colors
light grey
black
quote request

Description

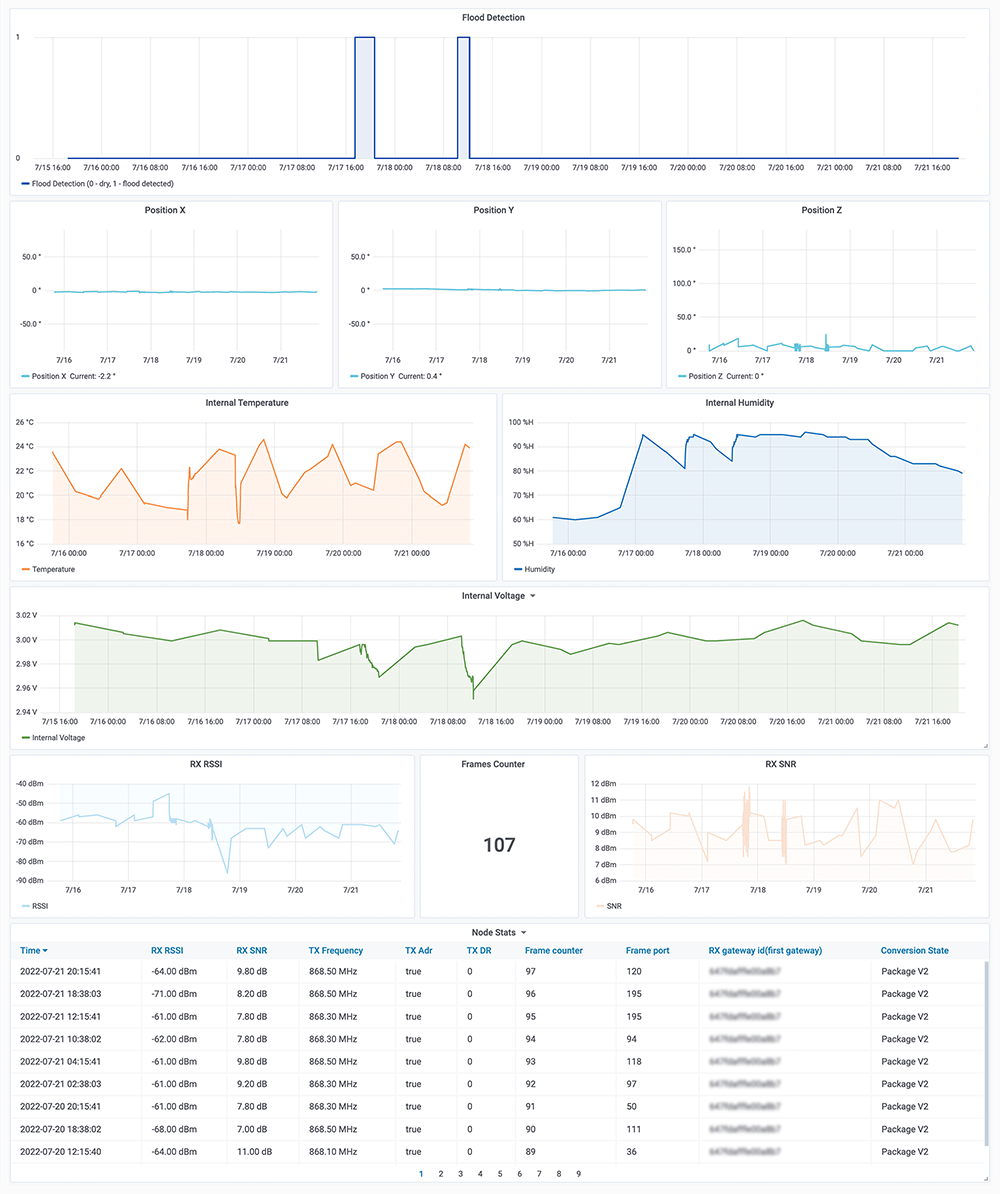

YO H2O is used for instant flood detection. It also transmits temperature and humidity data and its own position on the x, y, and z axes (via a built-in accelerometer).

On detecting a leak, the device immediately alerts the system about the risk of flooding. Simultaneously, the leak is indicated by a colour-changing LED.

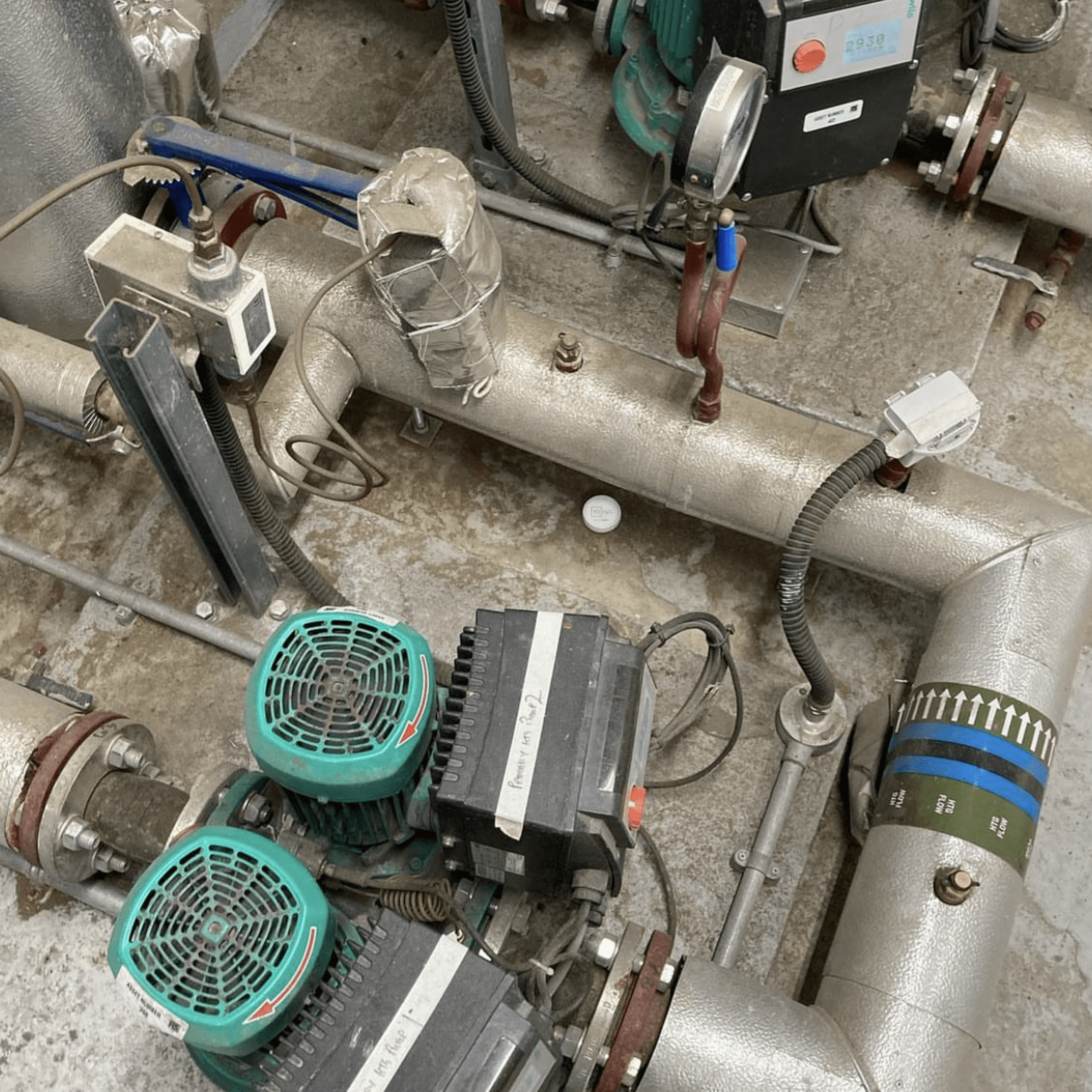

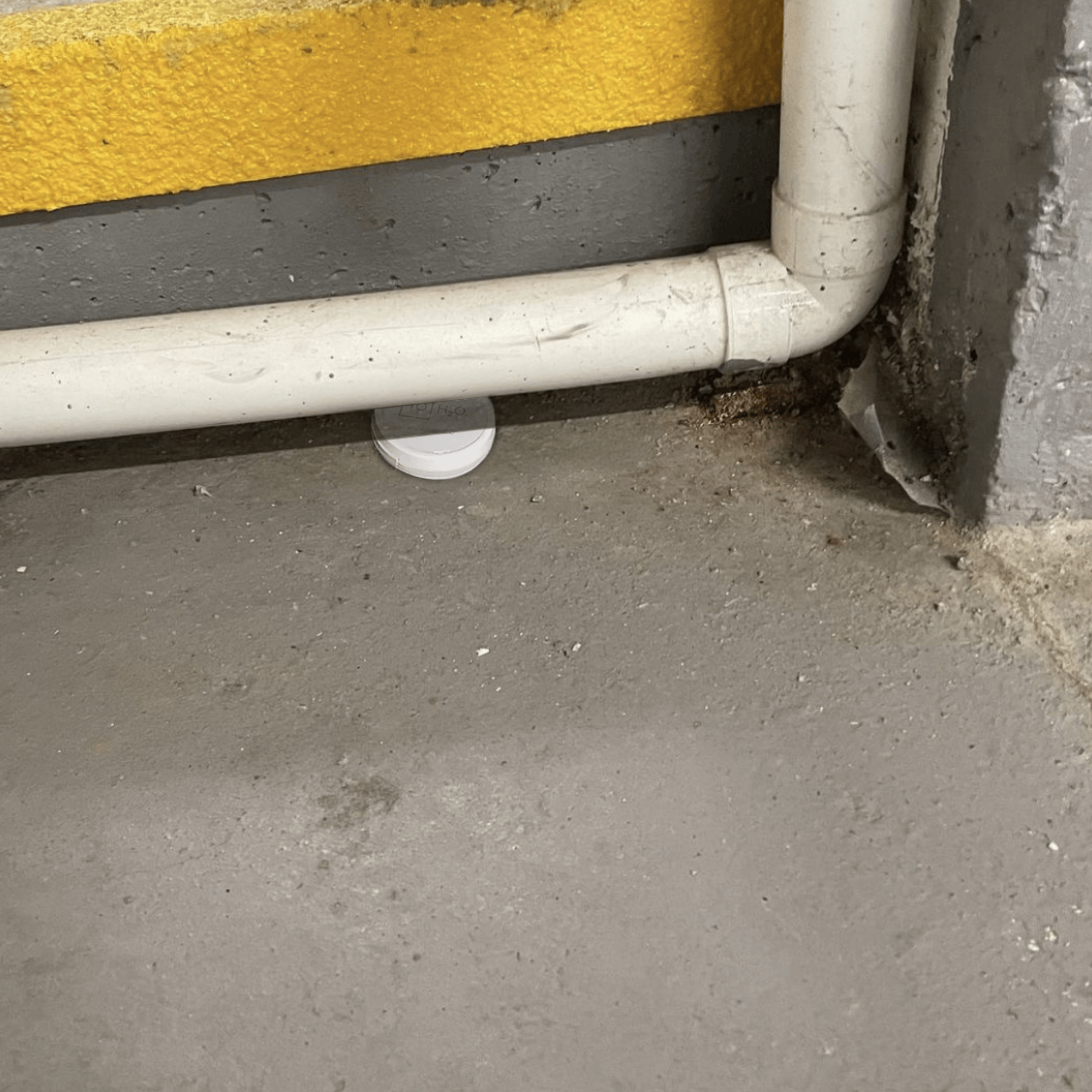

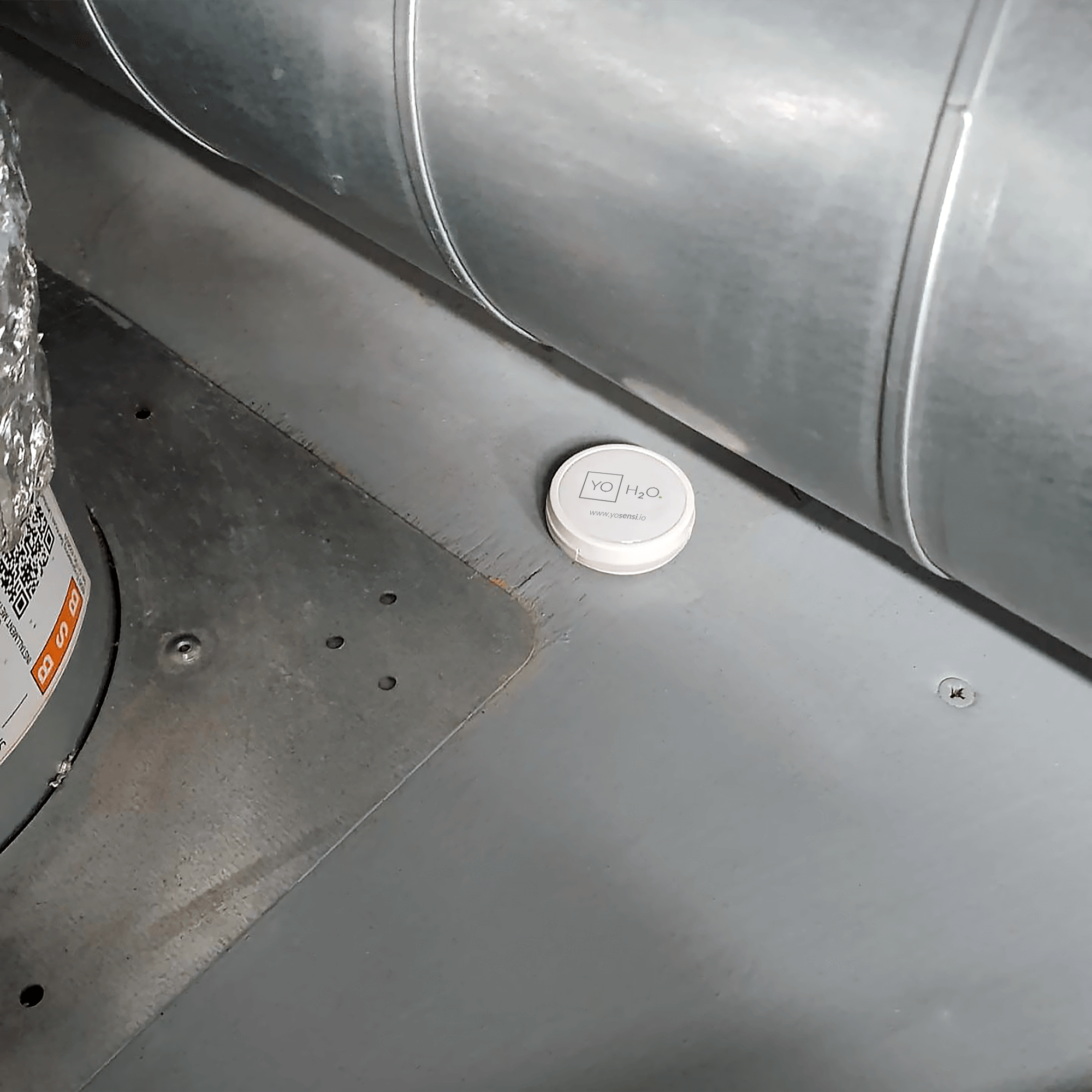

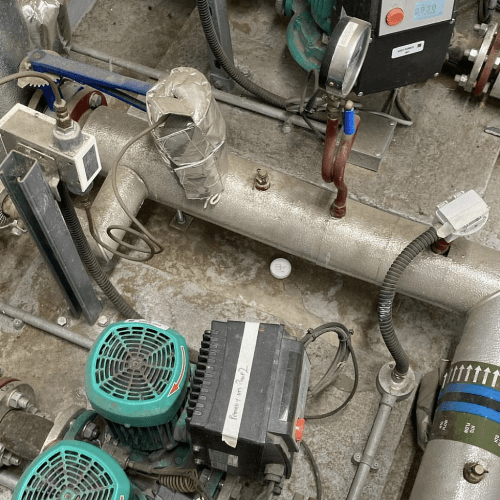

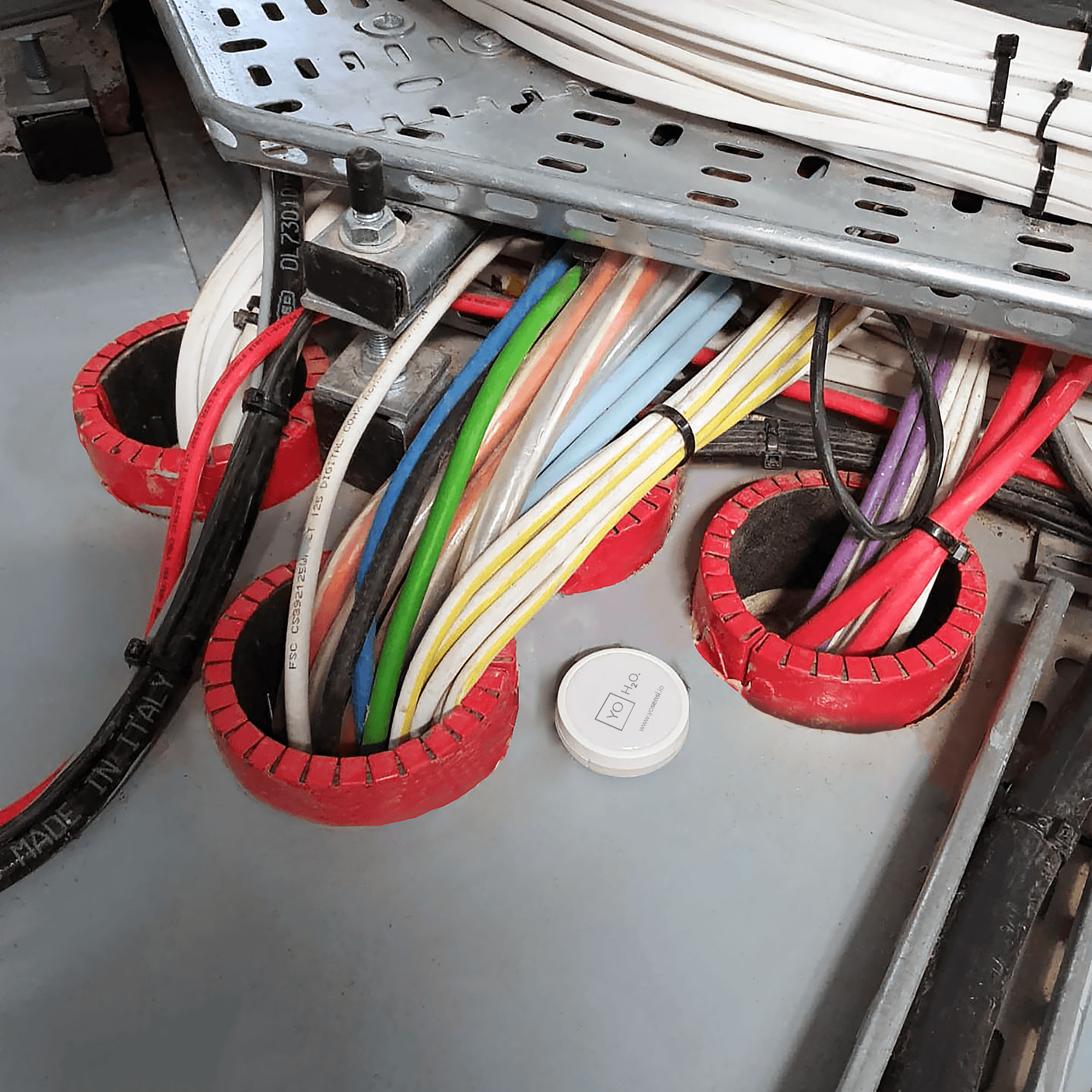

The device’s watertight enclosure is designed for both horizontal and vertical mounting.

YO H2O is a small device operating over LoRaWAN. We are a certified member of the LoRa Alliance, which is responsible for data transmission security.

Key features

  • Instant flood detection
  • Data transmission over distances of more than 3 km over LoRaWAN in medium-density urban spaces

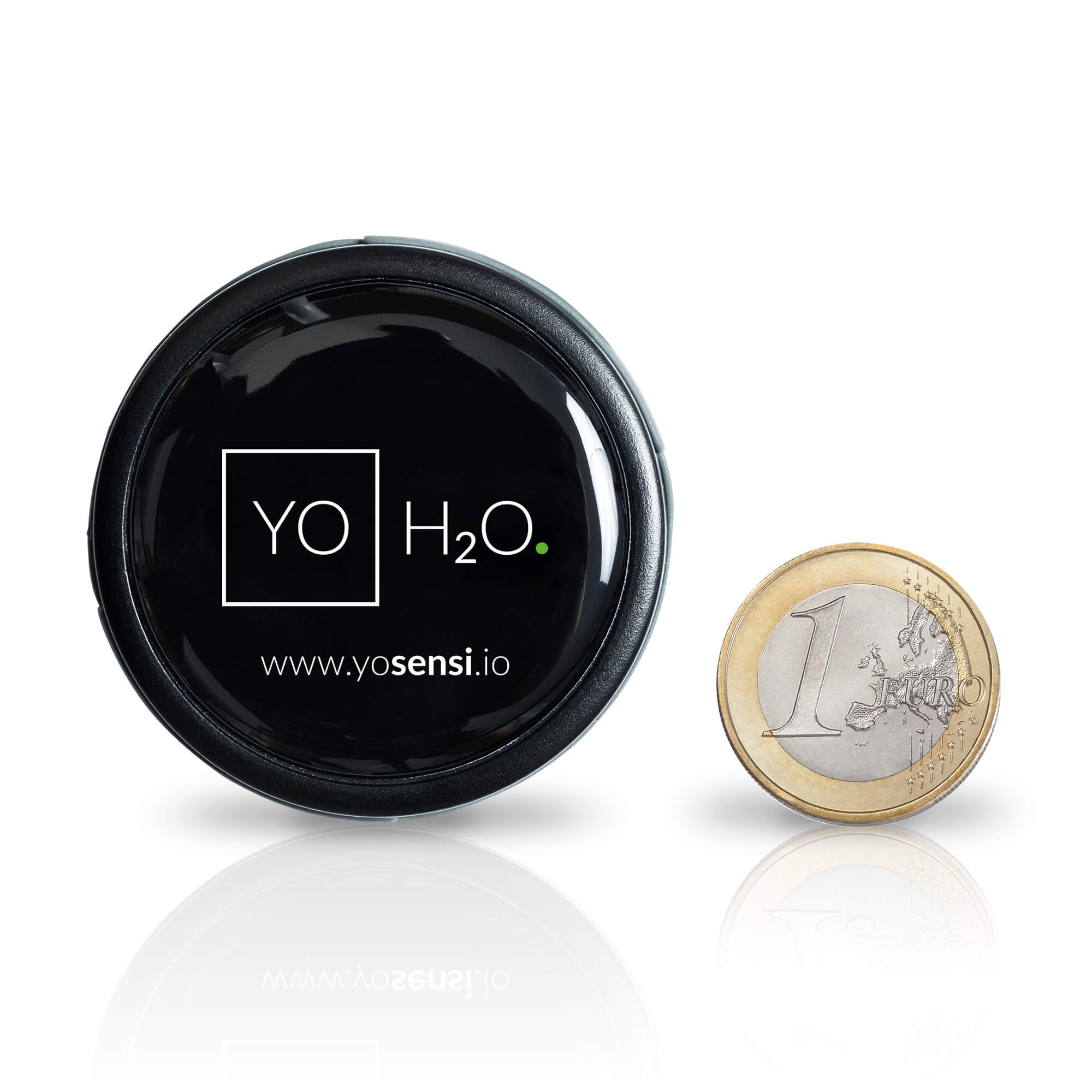

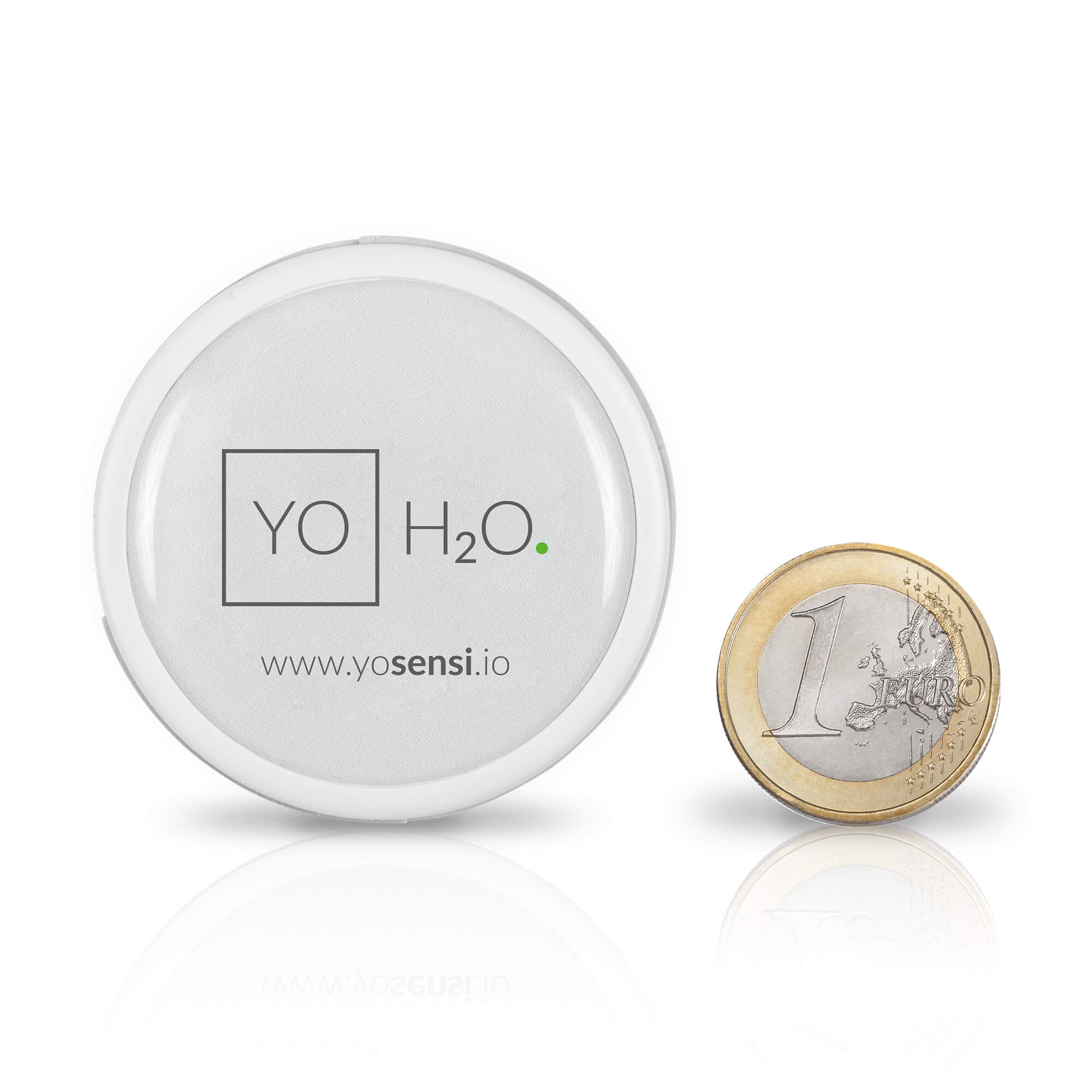

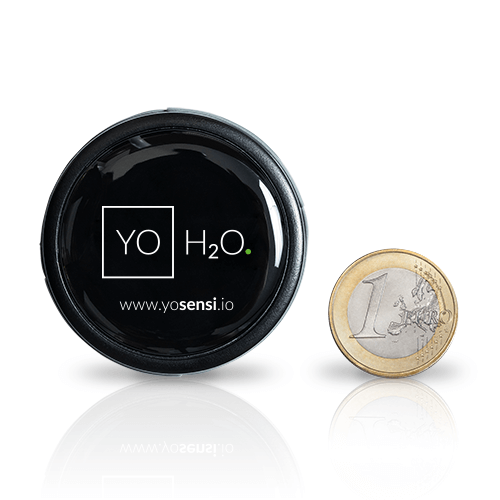

  • Small size – only 4.7 cm in diameter!
  • Battery-powered
  • IP54 protected enclosure
  • Secure wireless communication over LoRaWAN
  • ISM band selectable for regional needs (EU868, US915, AU915, and AS923)
  • Configuration via Bluetooth Low Energy 5.0
  • Wide network coverage, low energy consumption

Enclosure

Dimensions:• Diameter: 47 mm
• Height: 13 mm
Colour:• Light gray
• Black
Enclosure material:Plastic - ABS
Level of protection:IP54

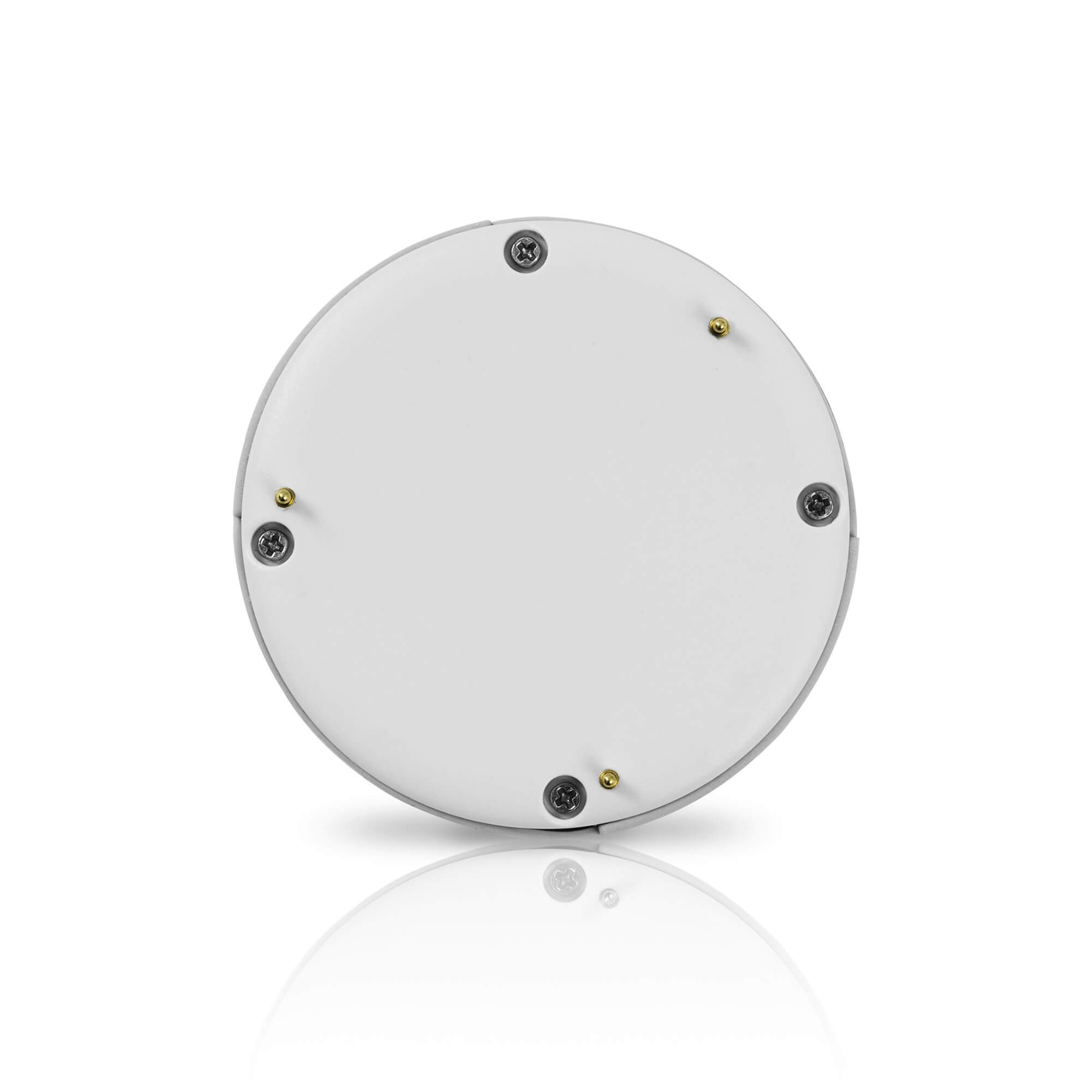

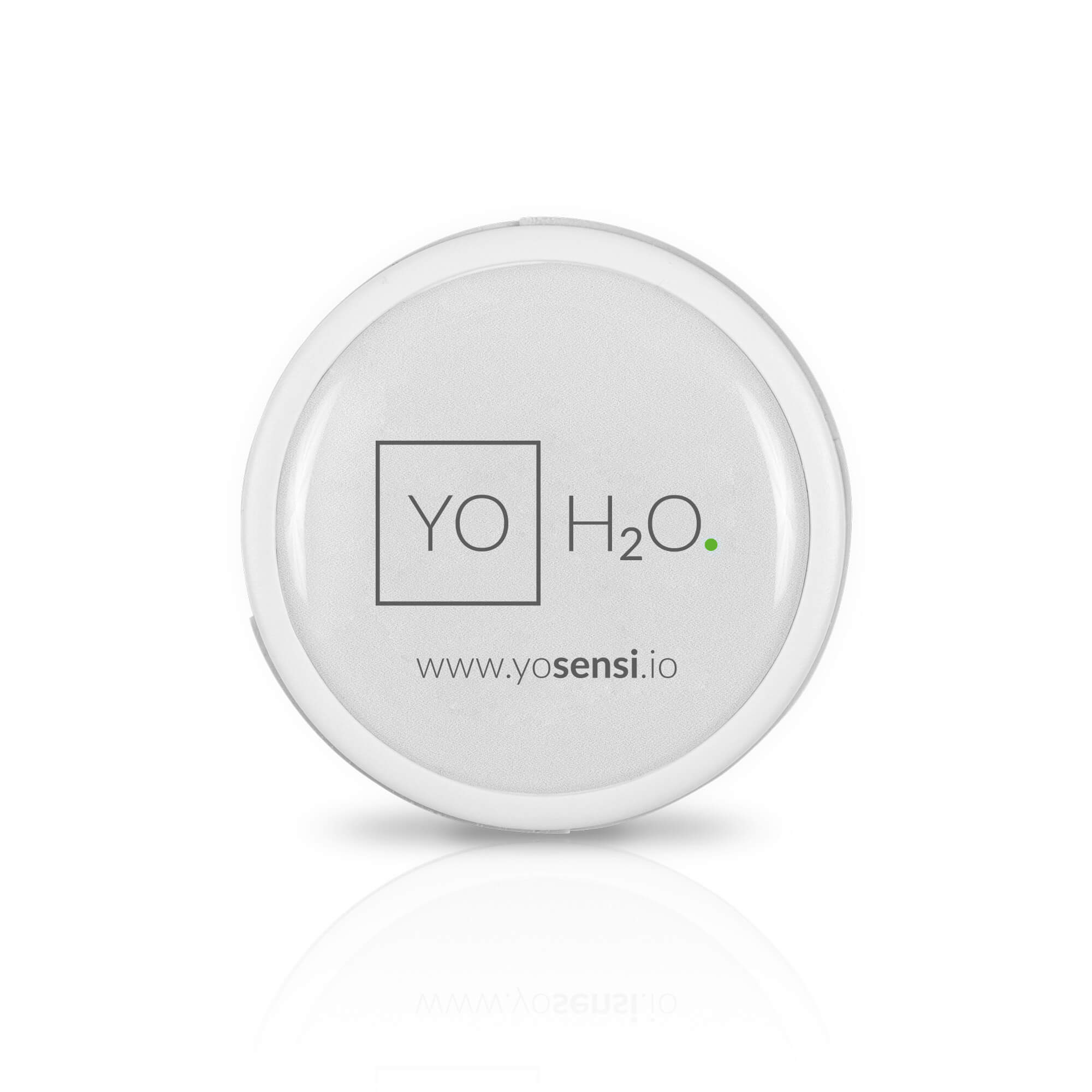

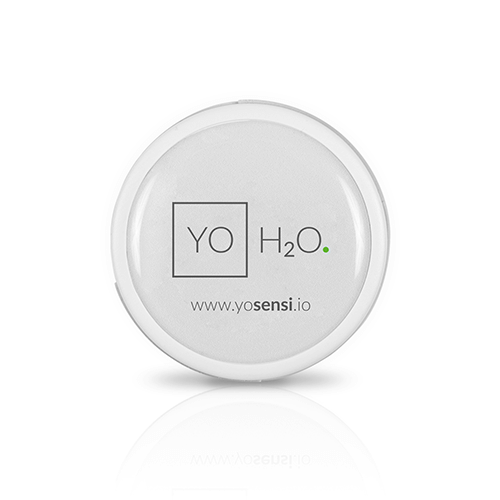

YO H2O Case Front YO H2O Case Side

Sensors Measuring range

Flood detection:

Measuring range:0–dry, 1–flood detected

Temperature:

Measuring range:−40°C to 125°C (-40°F to 257°F)
Accuracy:±0.2°C (32.36°F) (at temperatures from 5°C to 60°C (41°F to 140°F))

Relative humidity:

Measuring range:0% to 100%
Accuracy:±2% (at 20% to 80% RH)

Accelerometer:

Measuring range:±180° on x, y, z axes
Accuracy:±0.1° (at temperatures from −40°C to 85°C (-40°F to 185°F))
