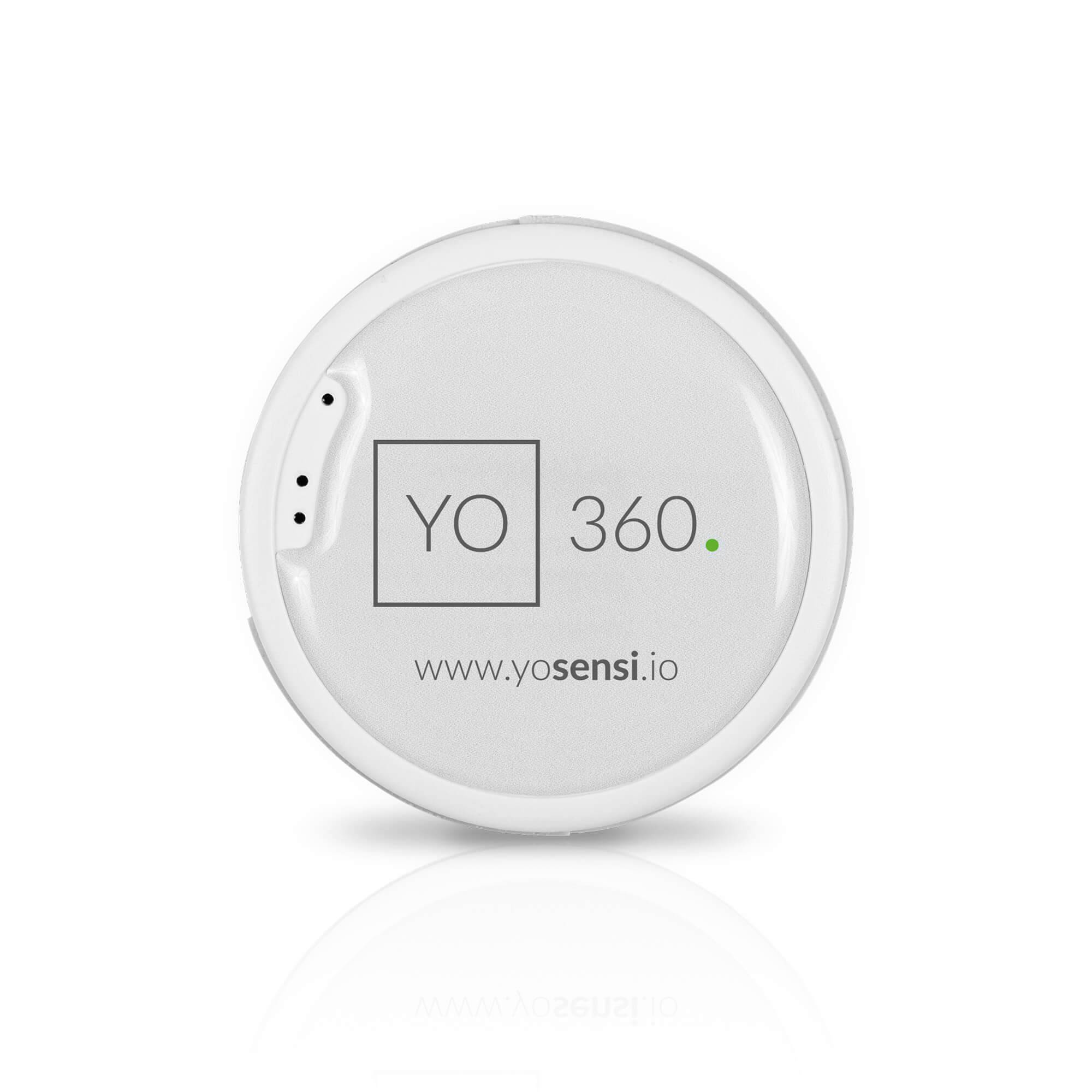

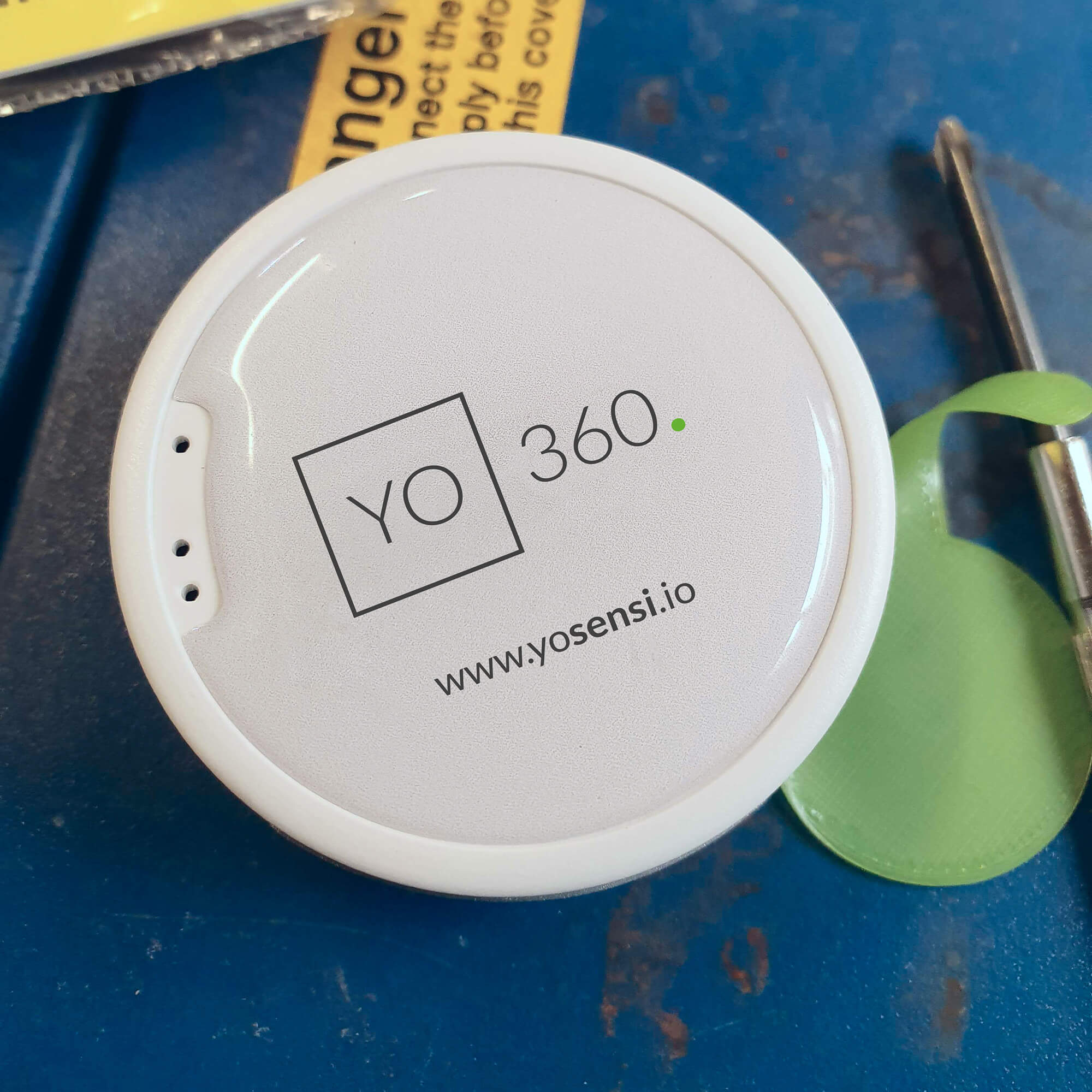

YO 360 LoRaWAN device measures temperature, humidity and has a built-in accelerometer

YO 360

Enclosure type • IP40

Band • EU868, US915, AU915, AS923

Colors

white

black

quote request

Description

YO 360 measures temperature and humidity, and it sends its own position on the x, y, and z axes (via a built-in accelerometer). Its small size, battery power supply, and wide data transmission range allow the device to be used virtually anywhere. The device is equipped with a lithium battery with a very low level of self-discharge.

YO 360 is a small device operating over LoRaWAN. We are a member of the LoRa Alliance, which is responsible for data transmission security.

Key features

Small size – only 4.7 cm in diameter!
Data transmission over distances of more than 3 km over LoRaWAN in medium-density urban spaces
Lithium battery with very low self-discharge
Possibility to adjust the enclosure and mounting options
Supported LoRaWAN network type: private or public and connection over ABP or OTAA
ISM band selectable for regional needs (EU868, US915, AU915, and AS923)
Configuration via Bluetooth Low Energy 5.0
Firmware update over BLE
Yosensi Configuration Web Tool for convenient firmware updates and device configuration
Wide network coverage and relatively low energy consumption
High-quality product made in EU

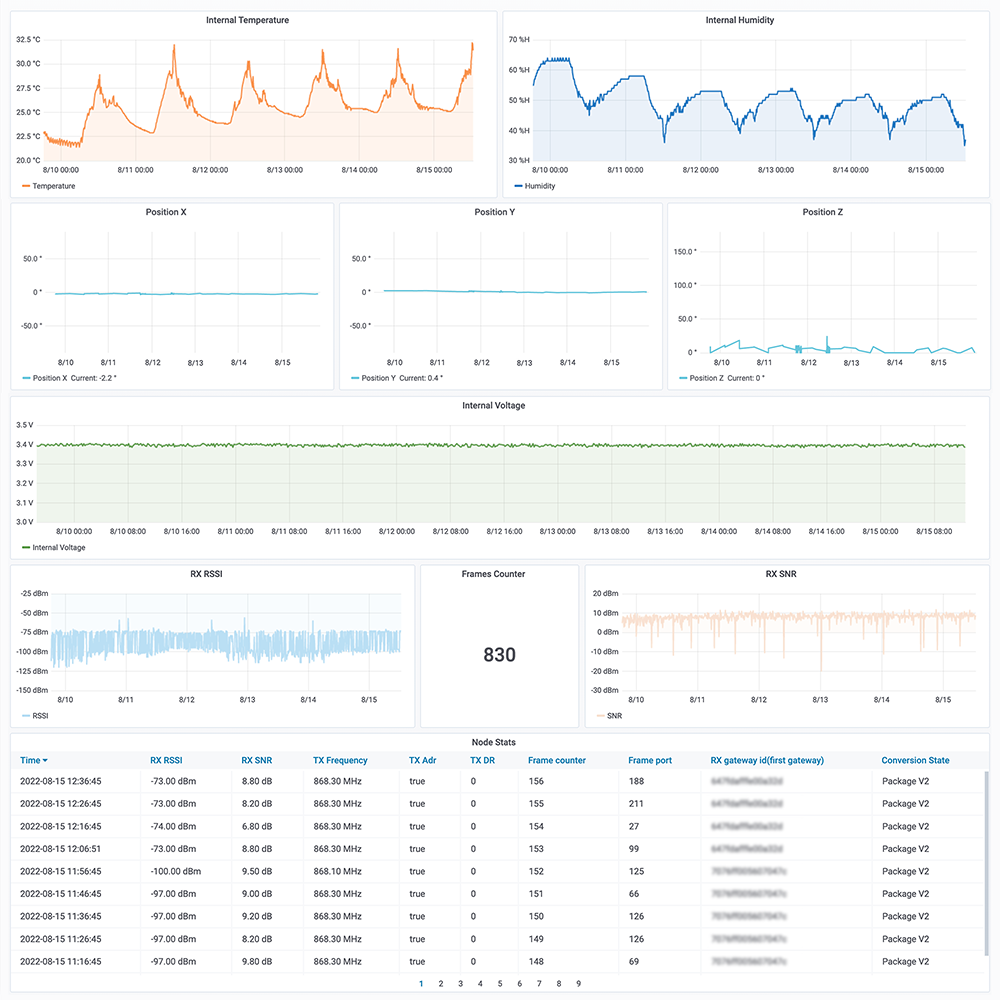

Sample charts of collected data

Parameters

Tx Power:	• LoRa EU868: to +14 [dBm] • LoRa US915, AU915, AS923: to +22 [dBm] • Bluetooth Low Energy (BLE): -20 to +6 [dBm]
Power supply:	• Battery CR2450 3V
Power consumption:	• Maximum: 110mA DC (3 V DC)
Weight:	• 25 g (with battery)

Enclosure

Dimensions:	• Diameter: 47 mm • Height: 13 mm
Colour:	• White • Black

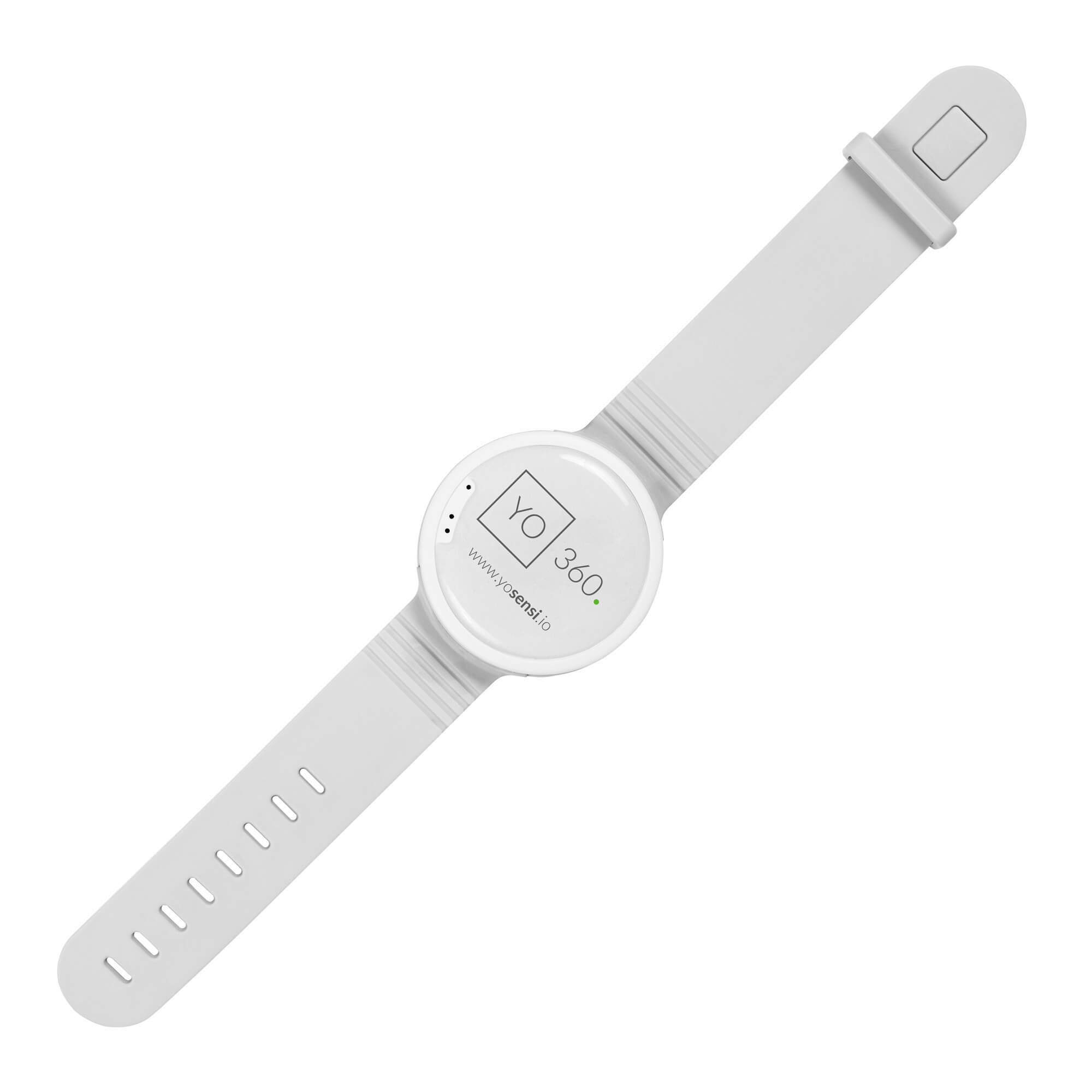

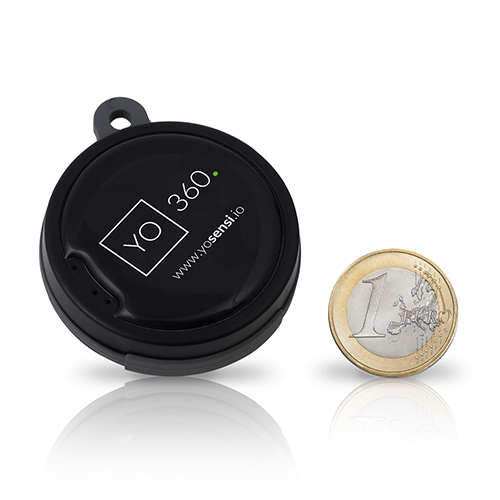

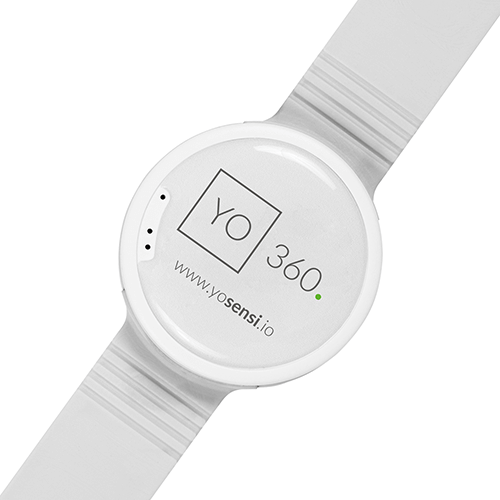

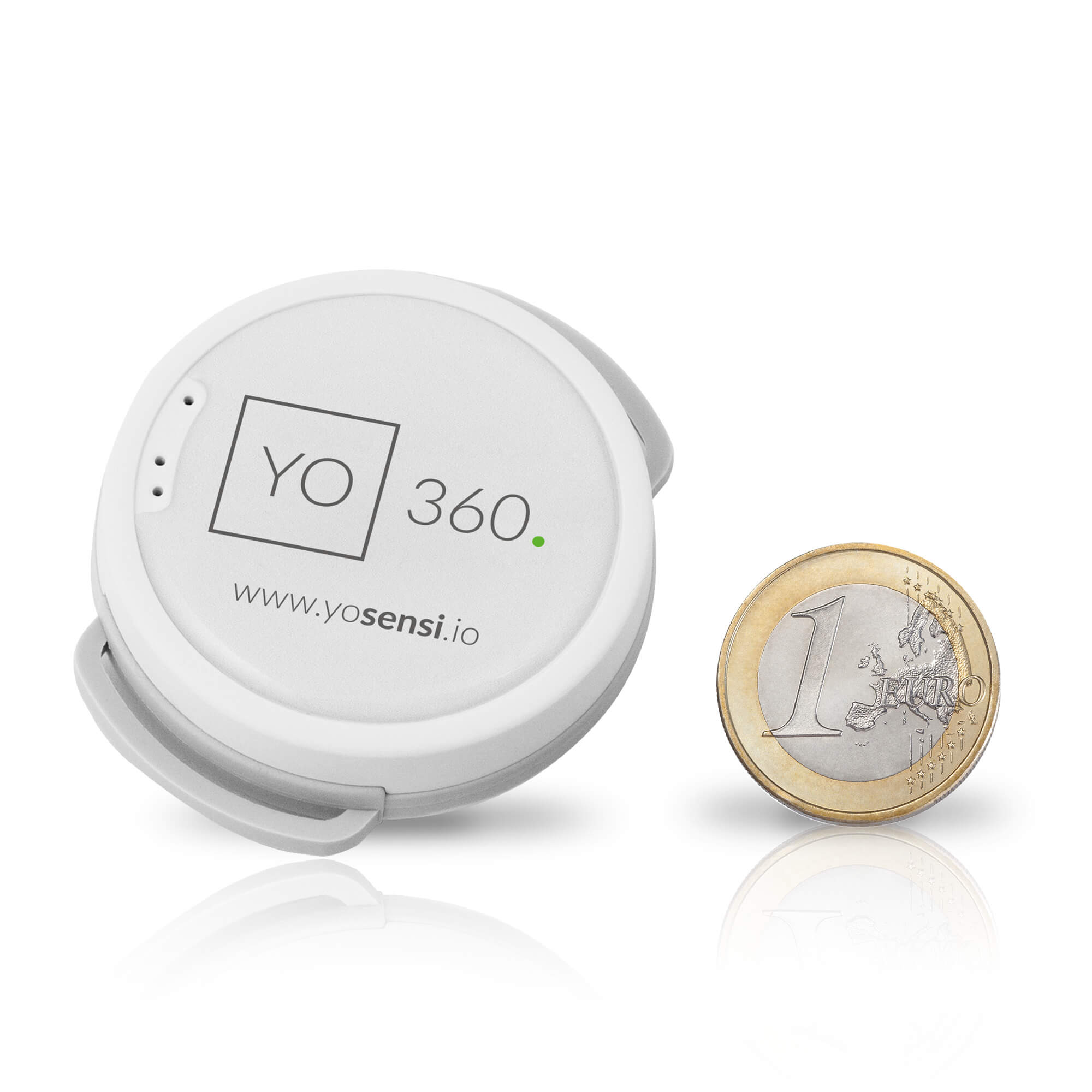

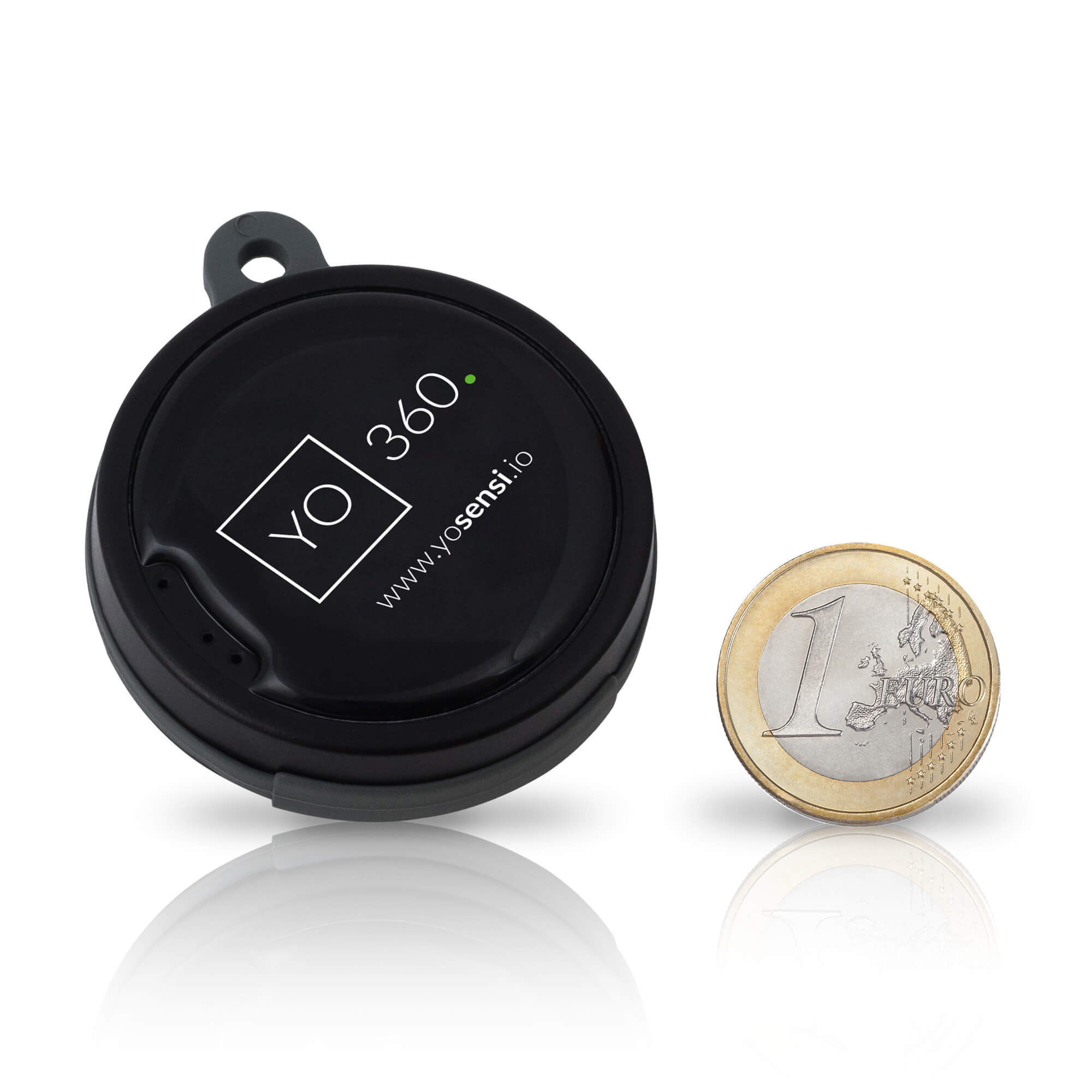

Installation:	Choose from: • No handles • One handle (mounting hole) • Two oval handles • Strap
Enclosure material:	Plastic - ABS
Fire resistance class:	No mention
Level of protection:	Choose from: • IP40

Sensors Measuring range

Temperature

Measuring range:	-40°C to 125°C (-40°F to 257°F)
Accuracy:	±0.2°C (32.36°F) (at temperatures between 5°C to 60°C (41°F to 140°F))

Relative humidity

Measuring range:	0% to 100%
Accuracy:	±2% (at 20% to 80% relative humidity)

Accelerometer

Measuring range:	±180° on x, y, and z axes
Accuracy:	±0.1° (at temperatures between -40°C to 85°C (-40°F to 185°F))

Resources

YO 360. User Guide YO 360. Datasheet YO 360. Quick Installation Guide
