Description

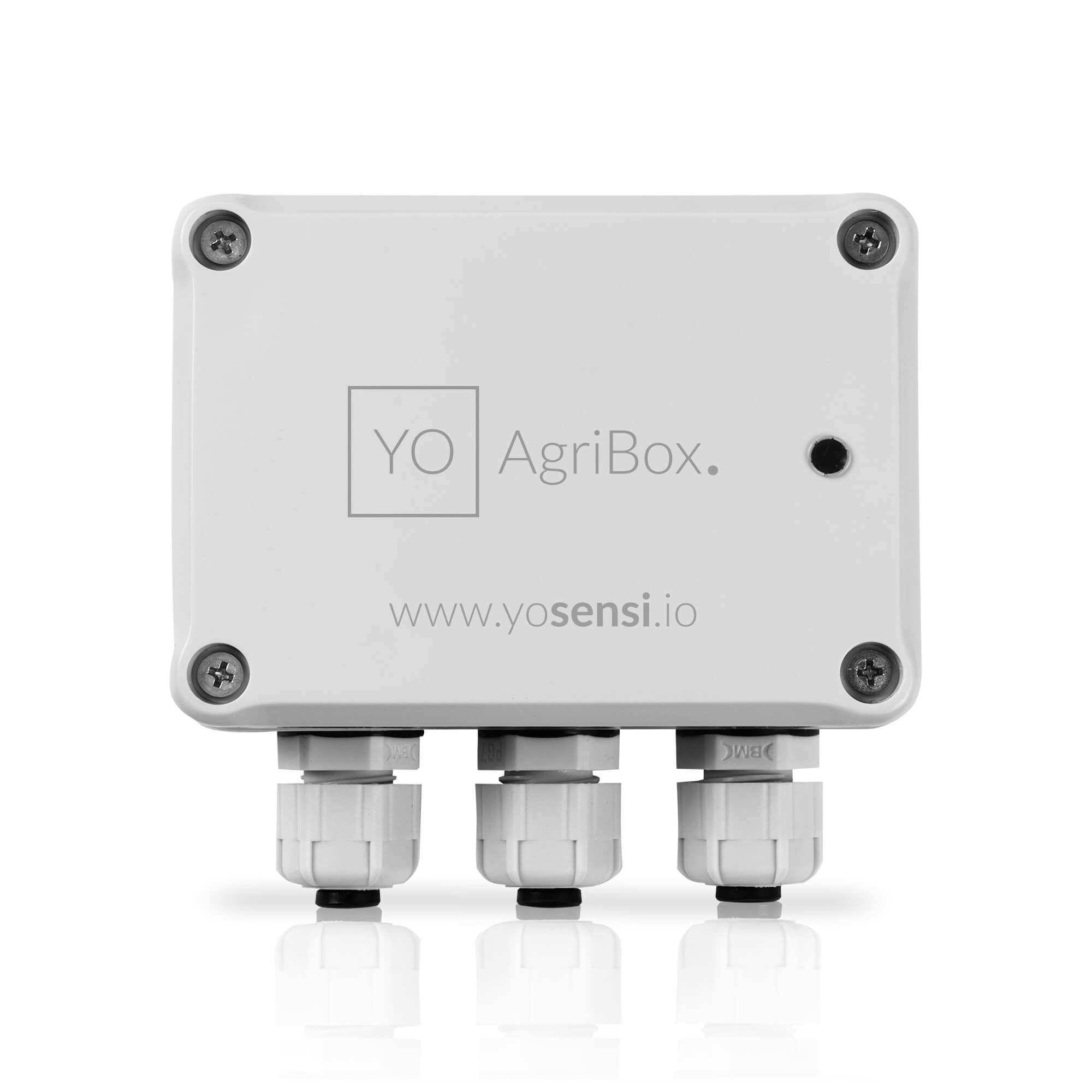

YO AgriBox is a LoRaWAN device for measuring soil moisture at 3 points. Additionally, the device contains sensors that measure temperature and relative humidity inside the device. YO AgriBox makes it easy to plan and maintain optimum growing conditions for plants.

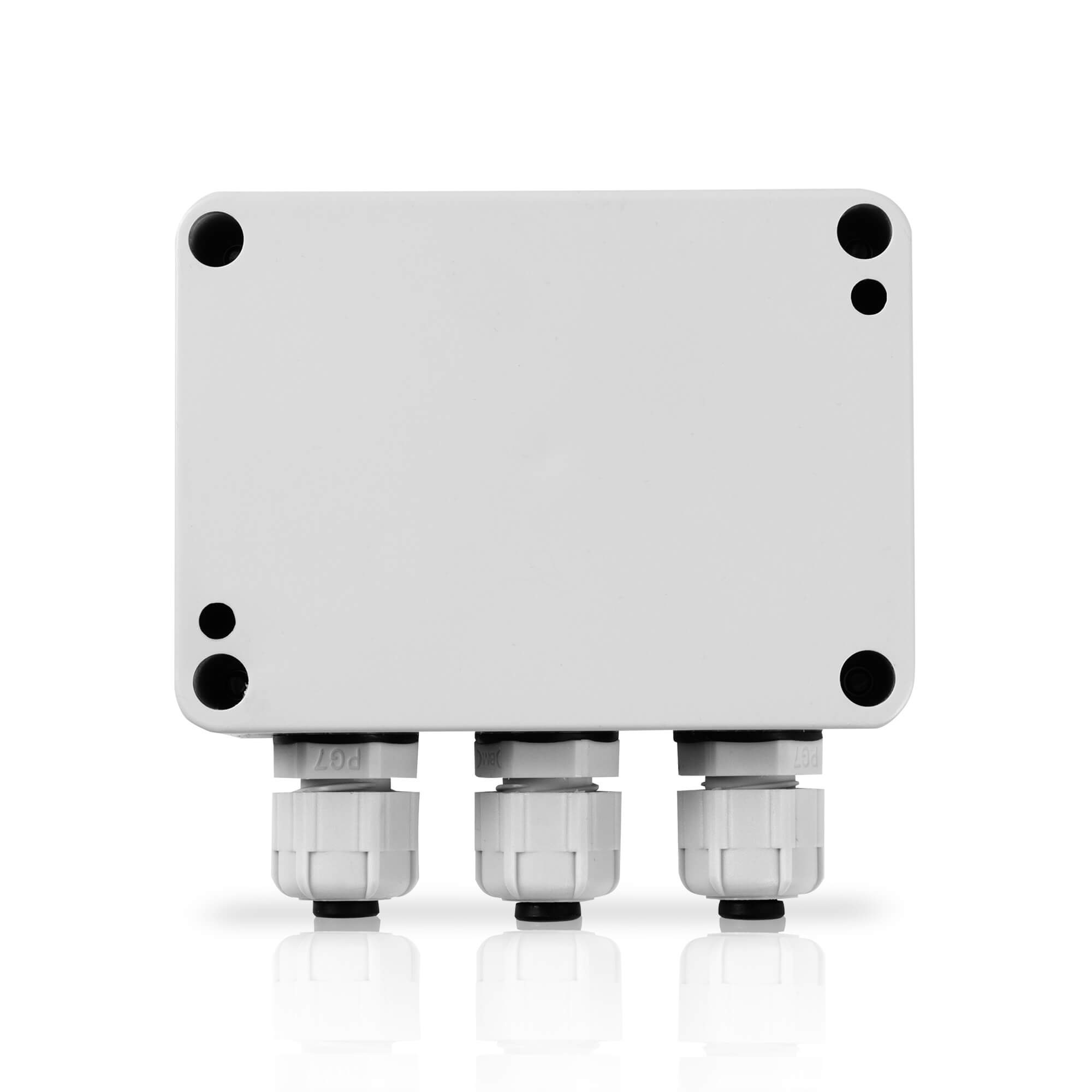

YO AgriBox is equipped with an enclosure made of ABS with IP67 protection class. The enclosure of the device has IP67 buffers for which measurement probes can be installed.

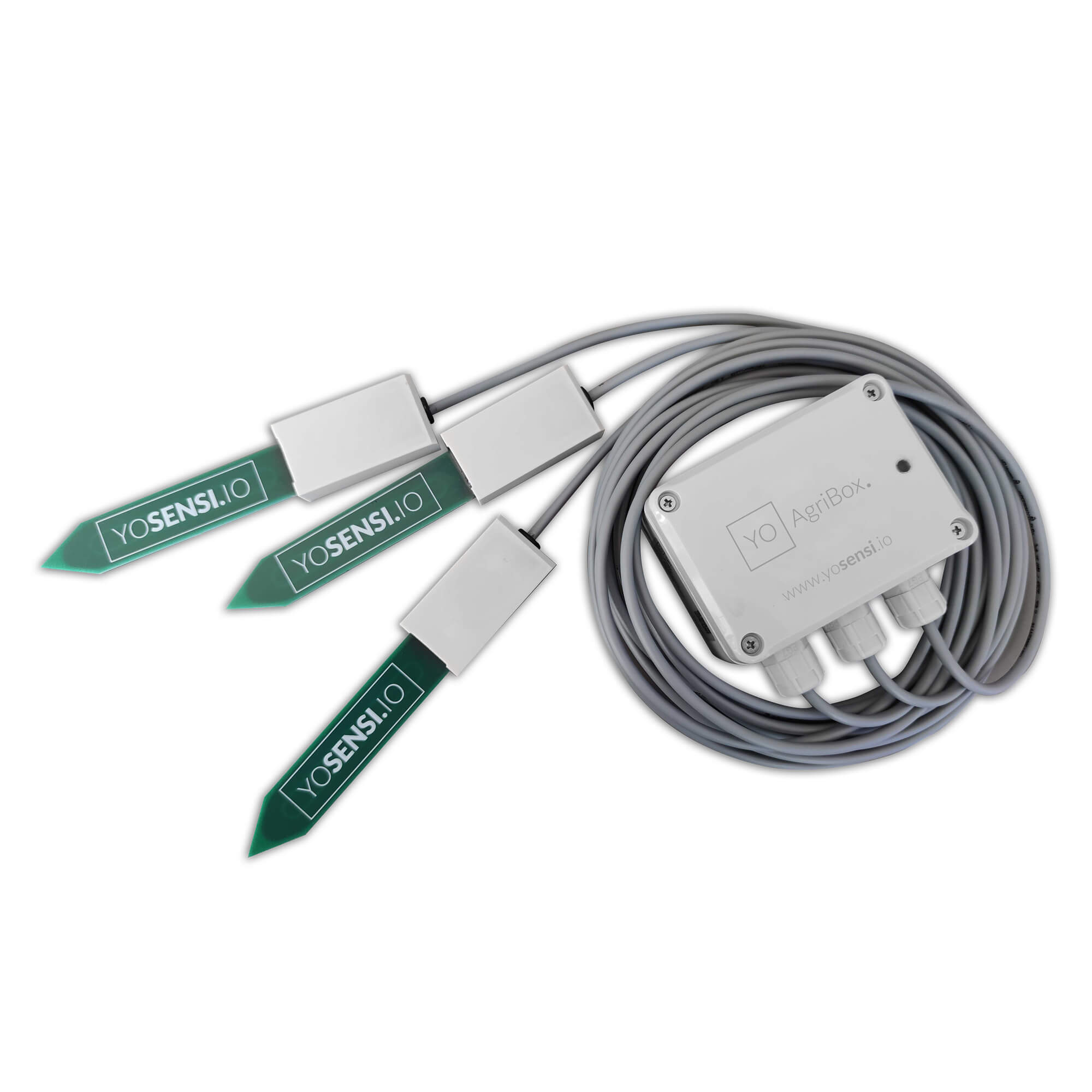

No soil moisture probes are attached to the device. Our offer includes soil moisture sensors with 2 m wire lengths. These probes have a Polyurethane (PUR) wire and a waterproof sensor enclosure. It is possible to connect up to 3 soil moisture probes. The measuring probes can be completely buried and placed at different depths of soil.
YO AgriBox operates over LoRaWAN. We are a member of the LoRa Alliance, which is responsible for data transmission security.
Key features
- Possibility of complete burying and placing the measuring probes at different depths of the soil
- Sensors equipped with polyurethane (PUR) wire and a waterproof sensor enclosure
- Possibility of connecting three soil moisture probes
- Battery-powered device
- IP67 protected enclosure
- Supported LoRaWAN network type: private or public and connection over ABP or OTAA
- ISM band selectable for regional needs (EU868, US915, AU915, and AS923)
- Configuration via Bluetooth Low Energy 5.0
- Firmware update over BLE
- Yosensi Configuration Web Tool for convenient firmware updates and device configuration
- Wide network coverage and very low energy consumption
- High-quality product made in EU

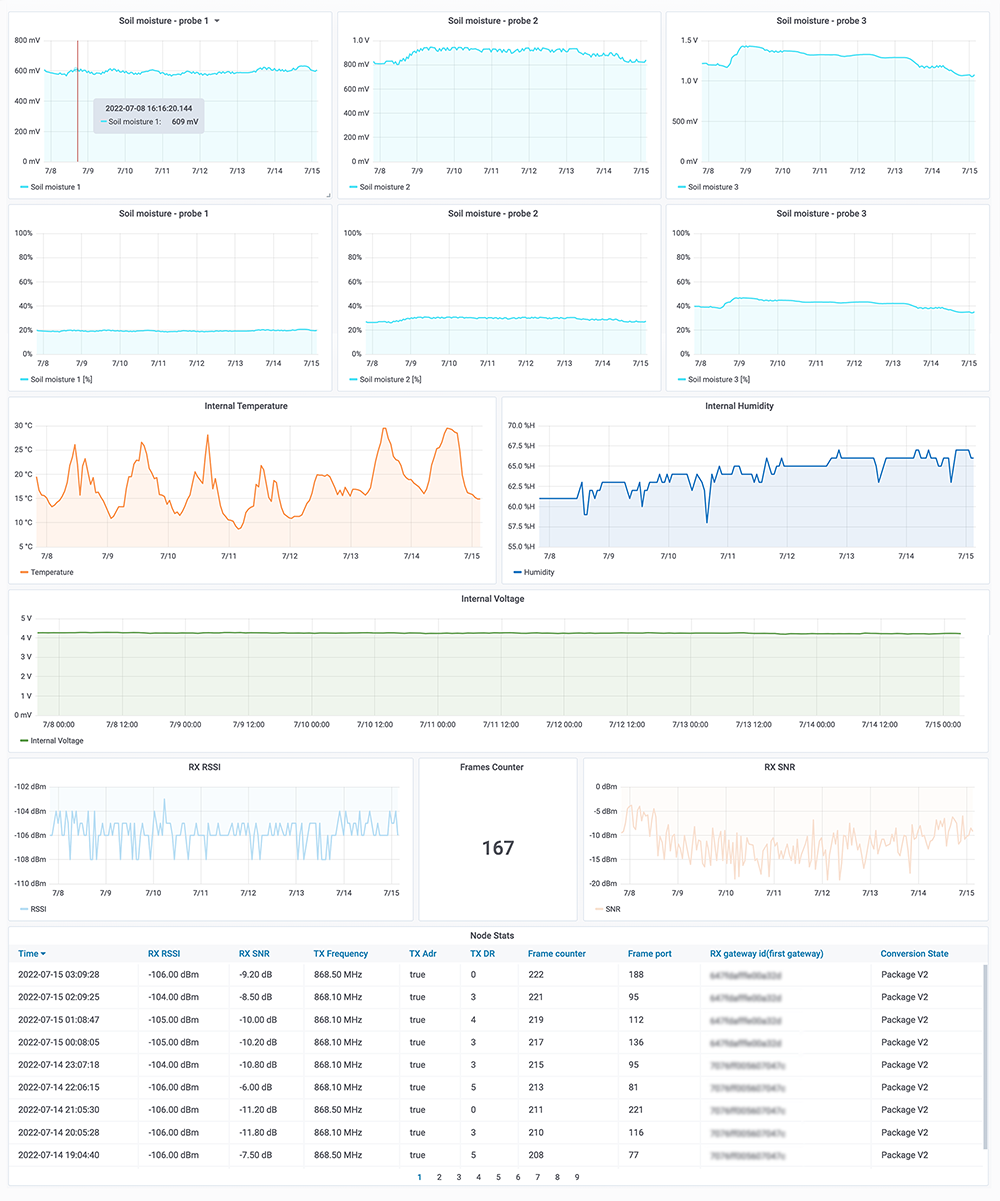

Sample charts of collected data
Parameters
| Tx Power: | • LoRa EU868: to +14 [dBm] • LoRa US915, AU915, AS923: to +22 [dBm] • Bluetooth Low Energy (BLE): -20 to +6 [dBm] |
| Power supply: | • 3 x AA battery (3 x 1,5 V) |
| Power consumption: | • Maximum: 120 mA DC (4,5 V DC) |
| Weight: | • 134 g (without batteries) • 204 g (with batteries) |
| Certificates: |
|
Enclosure
| Dimensions: | • Height: 42 mm • Width: 88 mm • Depth: 64 mm |
| Colour: | Light grey |
| Installation: | Select between: • Horizontal • Vertical (can be screwed to the wall) |
| Enclosure material: | ABS |
| Level of protection: | IP67 |
Sensor measuring range
Volumetric water content:
| Measurement range: | from 0% to 100% |
Temperature:
| Measurement range: | from -40°C to 125°C (-40°F to 257°F) |
| Accuracy: | ±0.2°C (32.36°F) (in temperatures from 5°C to 60°C (41°F to 140°F)) |
Relative Humidity:
| Measurement range: | from 0% to 100% |
| Accuracy: | ±2% (relative humidity from 20% to 80%) |
