Products > YO Analog

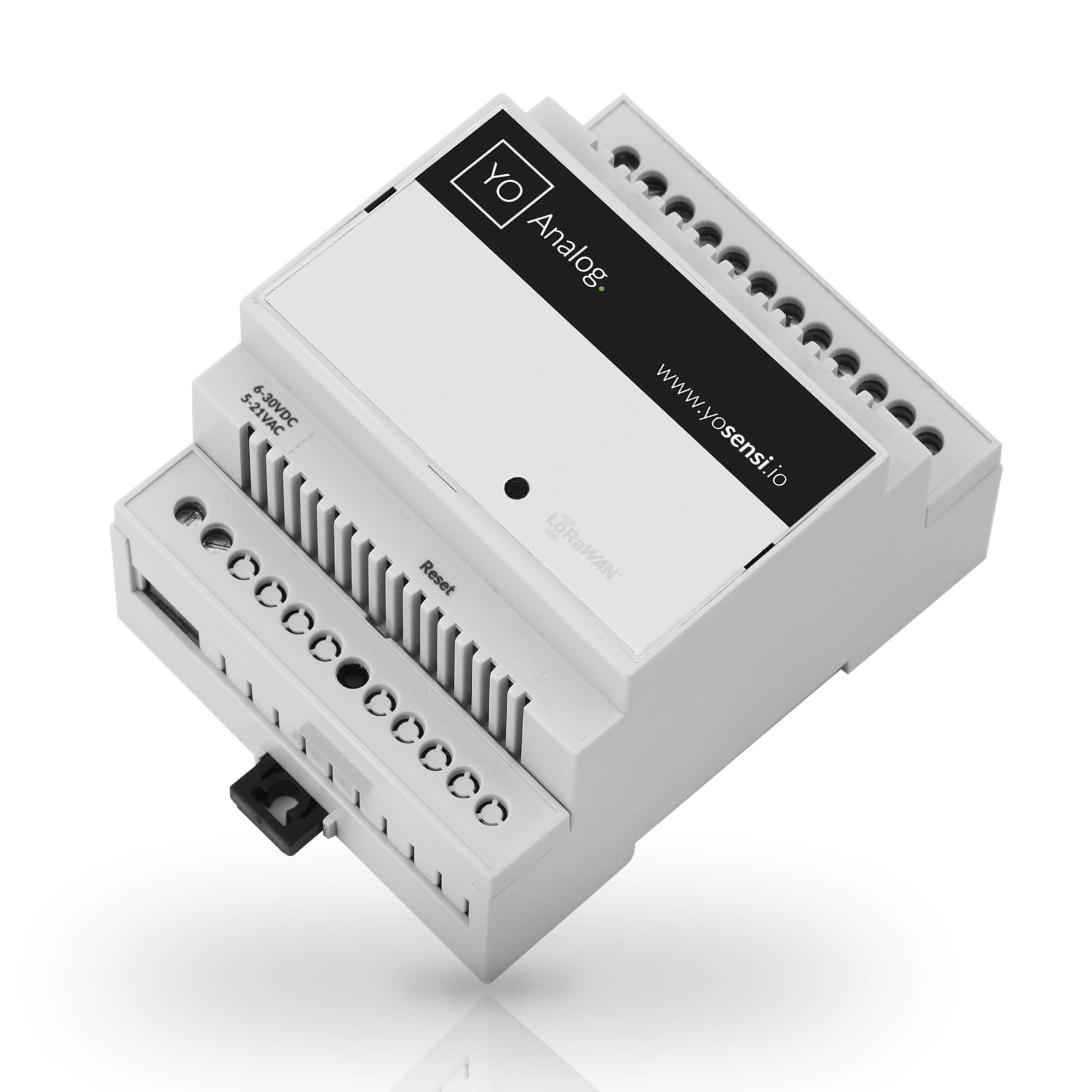

YO Analog
LoRaWAN
Enclosure type • DIN rail, IP67
Band • EU868, US915, AU915, AS923
Colors
light grey
Certificate CE
quote request

Description

YO Analog makes it possible to monitor devices and processes in automation.

The device has six configurable measurement inputs, each of which can operate in one of two analogue modes: voltage input (0–10 V) or current input (4–20 mA).

The device enclosure has been designed to mount on electrical switchboards or in automation cabinets on standard 35 mm DIN rails. YO Analog is also available in an IP67-sealed enclosure (IP67-sealed enclosure is not adapted for mounting on a DIN rail).

YO Analog operates on a LoRaWAN network. We are a certified member of the LoRa Alliance, which is responsible for data transmission security.

All our devices are made in the European Union.

Key features

  • 6 configurable measurement inputs
  • 2 input modes: voltage (0–10 V) or current (4–20 mA)
  • Overvoltage and overcurrent protection
  • External voltage detection regardless of polarity
  • 35 mm DIN rail enclosure
  • Supported LoRaWAN network type: private or public and connection over ABP or OTAA
  • ISM band selectable for regional needs (EU868, US915, AU915, and AS923)
  • Configuration/reconfiguration over Bluetooth Low Energy 5.0
  • Firmware update over BLE
  • Command Line Interface application for convenient device configuration
  • Wide network coverage and low energy consumption
  • High-quality product made in EU

Parameters

Tx Power: • LoRa EU868: to +14 [dBm]
• LoRa US915, AU915, AS923: to +22 [dBm]
• Bluetooth Low Energy (BLE): -20 to +6 [dBm]
Power supply: • 6 - 30 V DC
• 5 - 21 V AC
Power consumption: • Typical: 80mA (12V DC)
• Maximum: 180mA (12V DC)
Weight: • 127 g
Certificates: CE

Enclosure

Dimensions: • Height: 90 mm
• Width: 71.2 mm (4 modules)
• Depth: 58 mm
Colour: Light grey (RAL 7035)

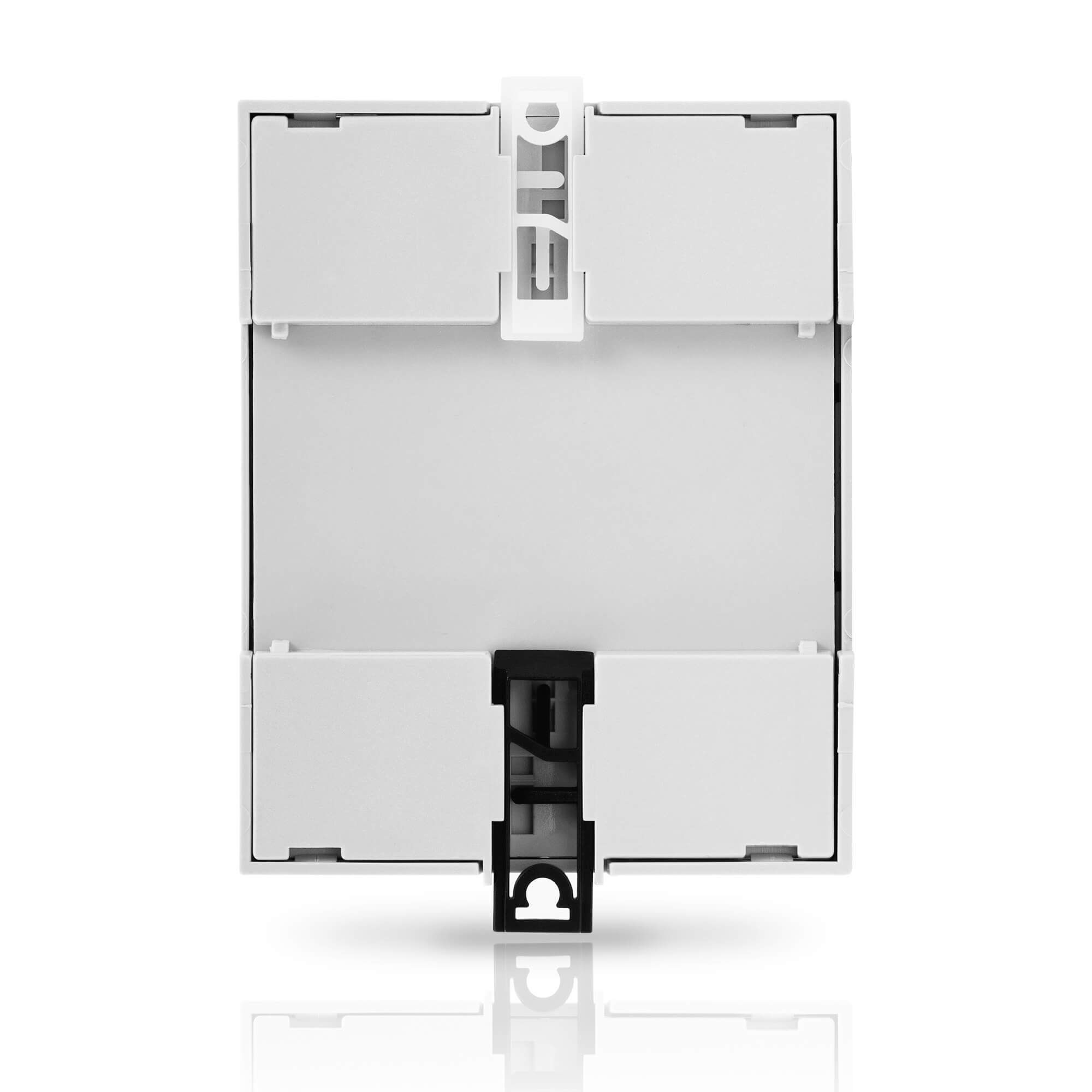

Installation: 35 mm DIN rail standard
Enclosure material: Polycarbonate
Fire resistance class: UL94 - VO
Level of protection: IP20

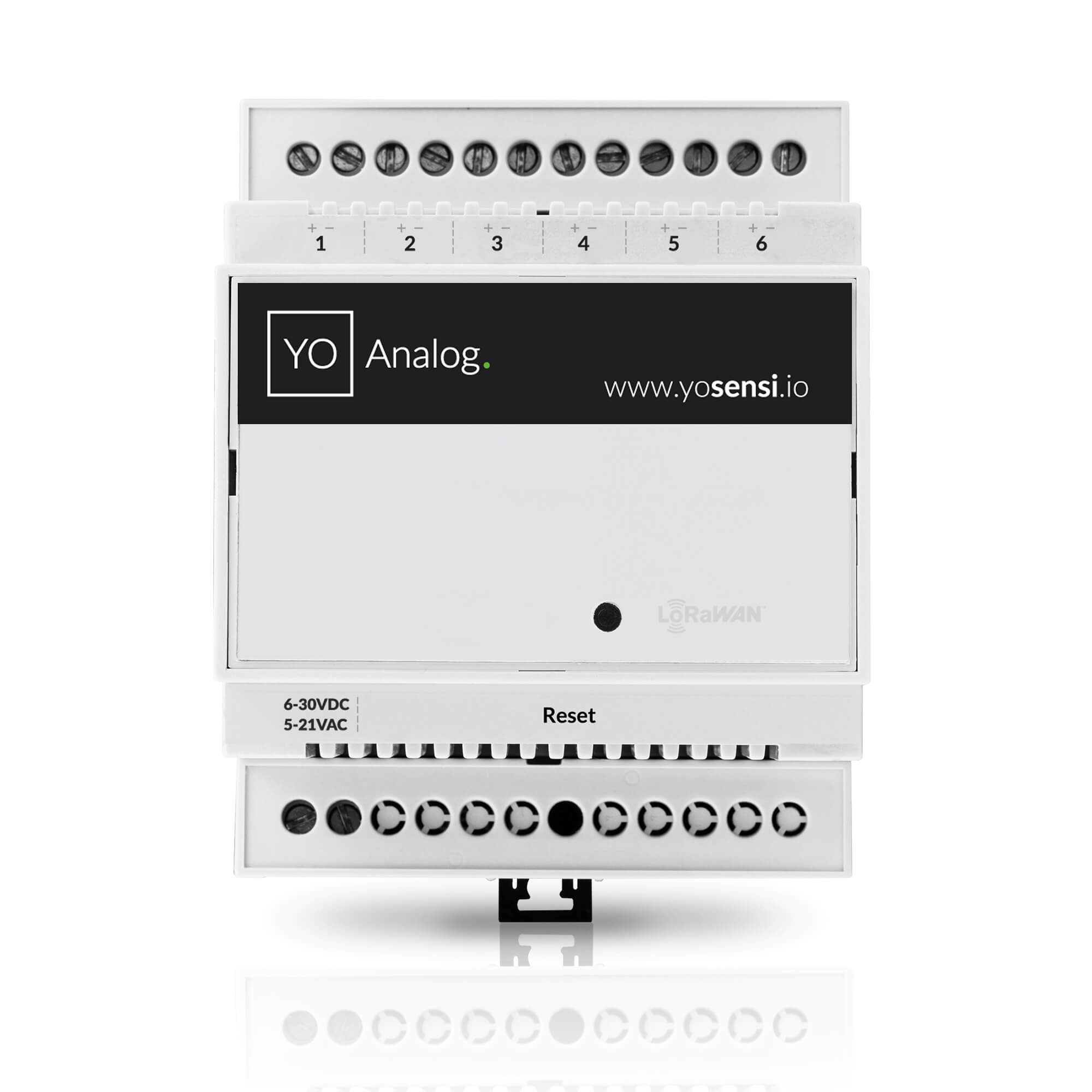

1 + - 2 + - 3 + - 4 + - 5 + - 6 + - 6-30VDC 5-21VAC Reset 45 mm58 mm
