YO LoRadio
Band • EU868, US915, AU915, AS923
quote request

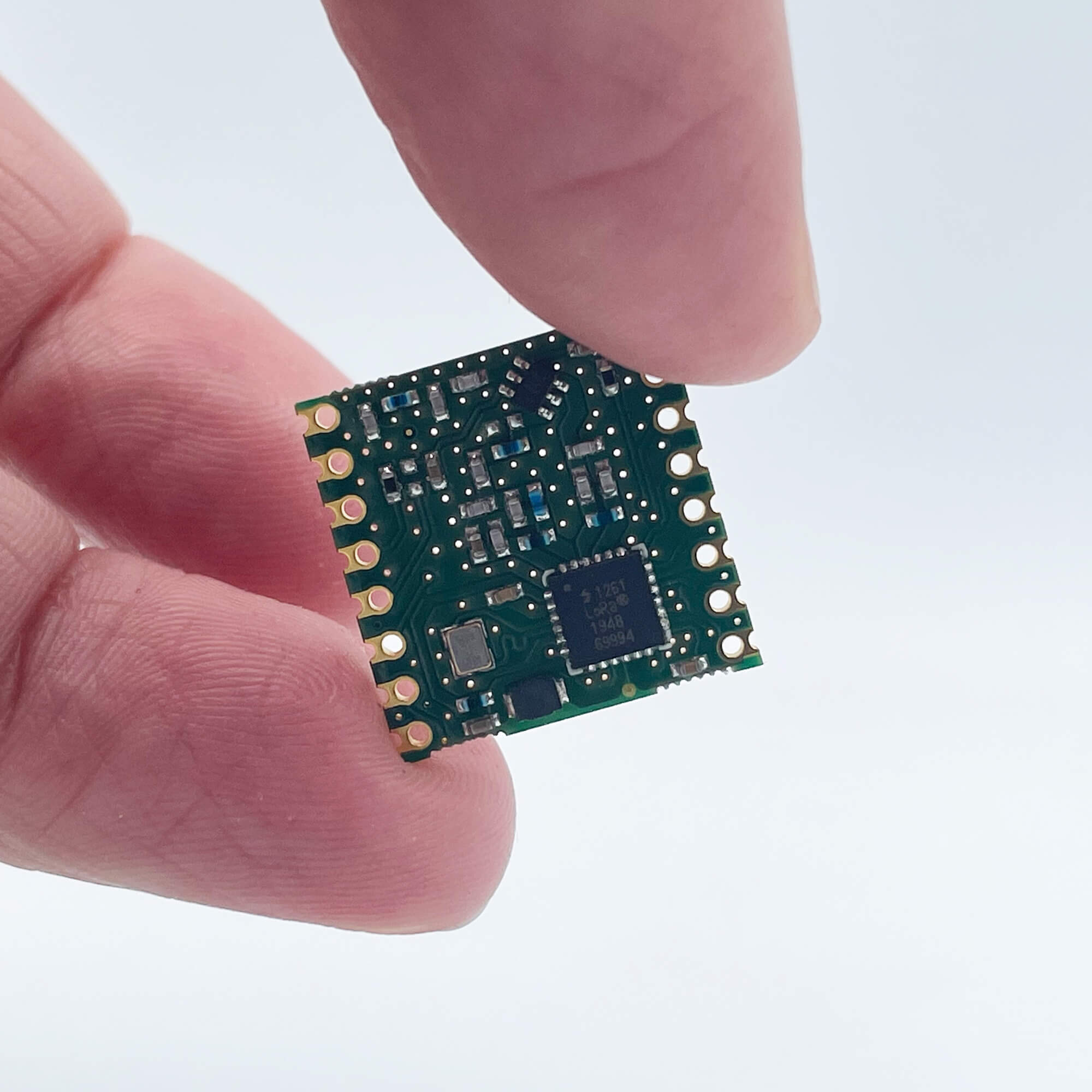

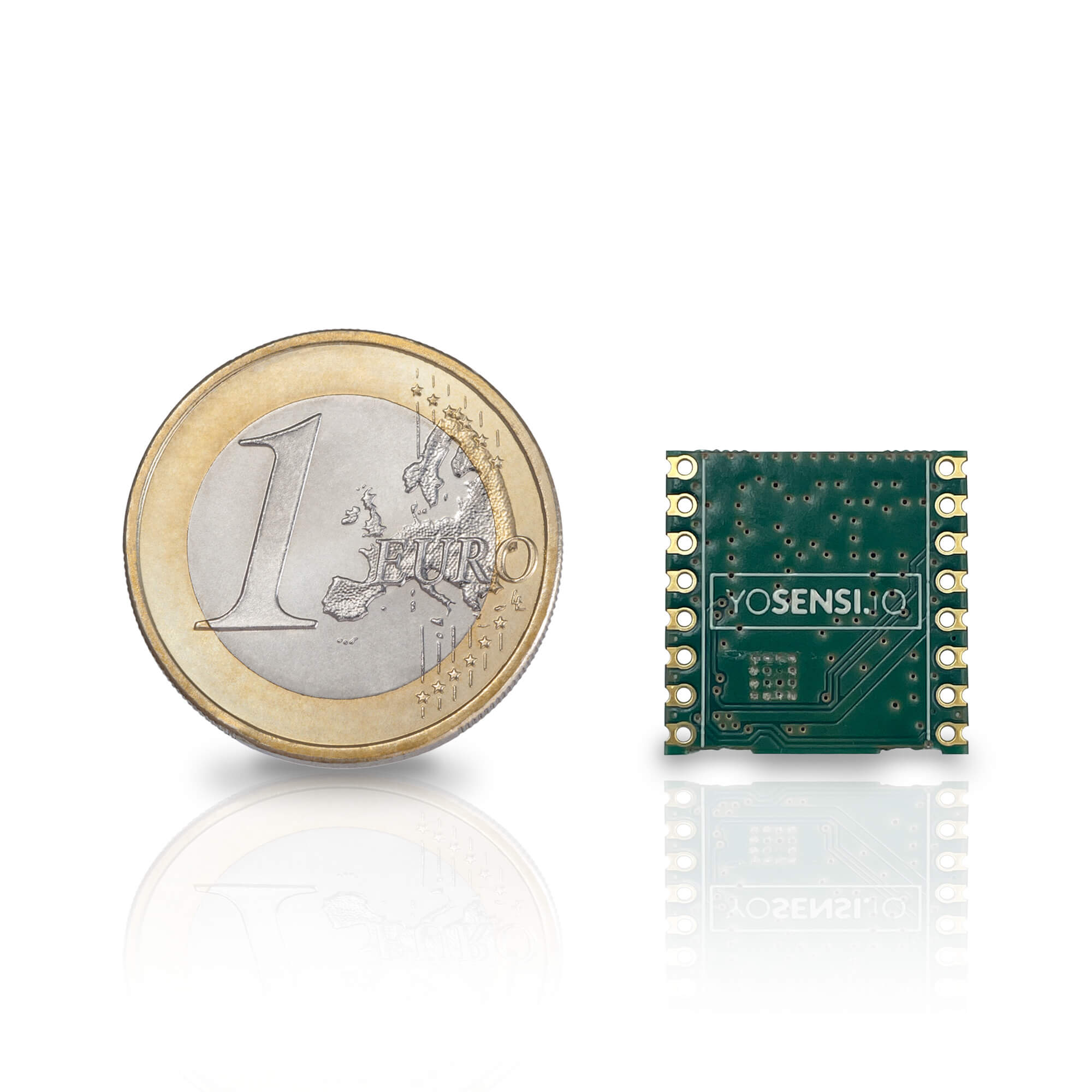

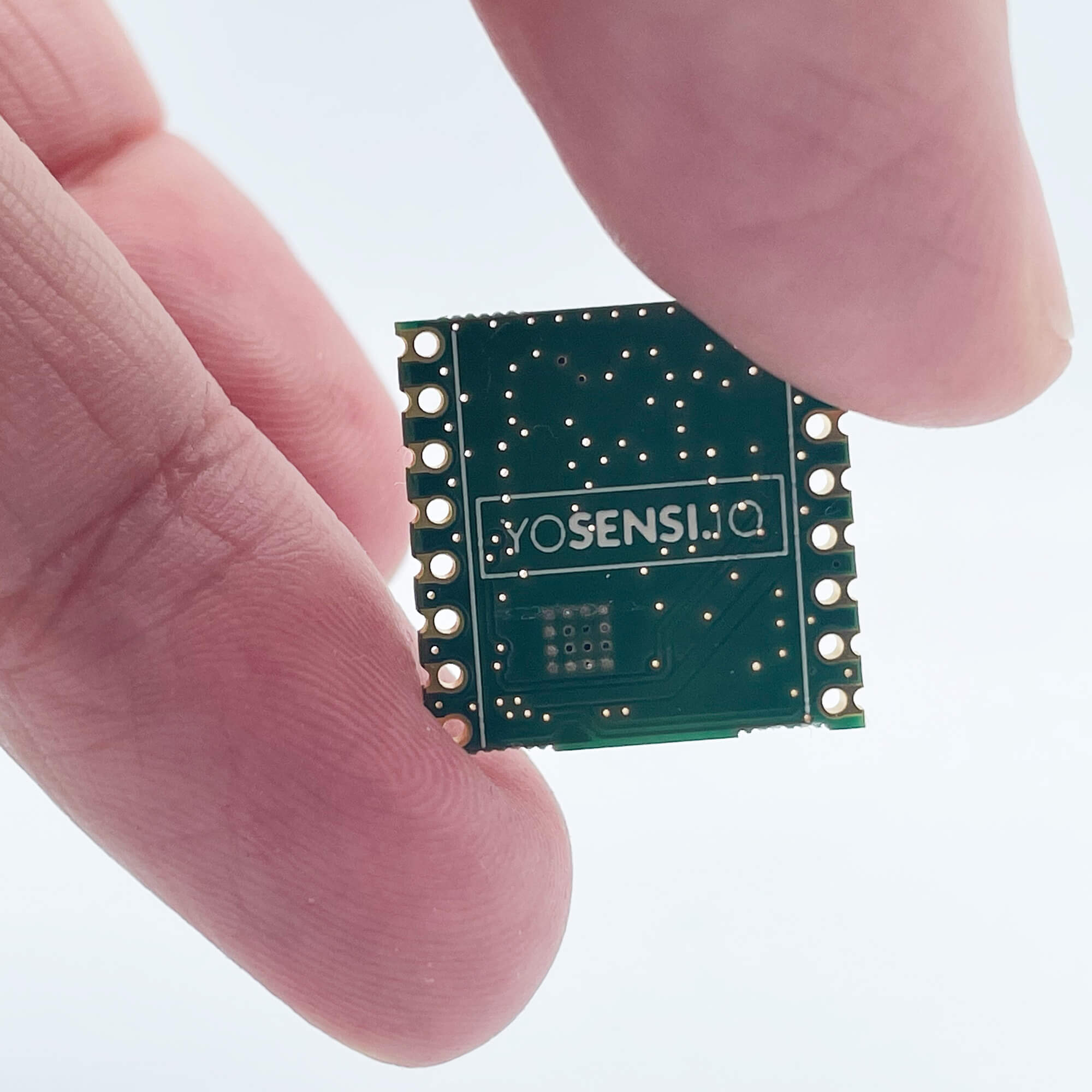

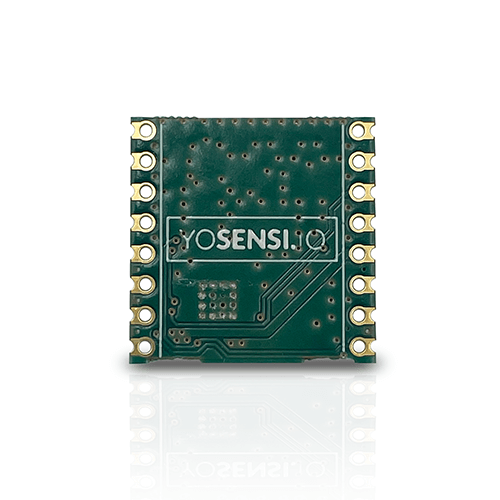

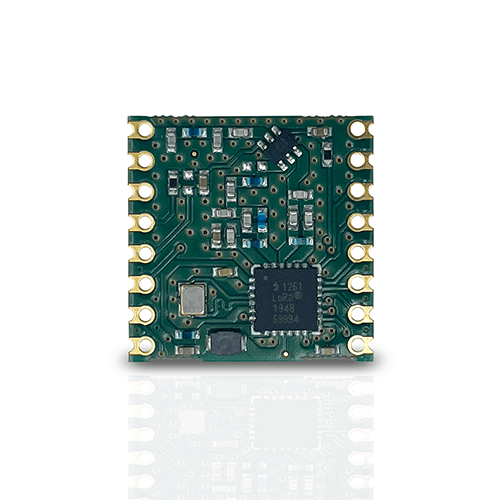

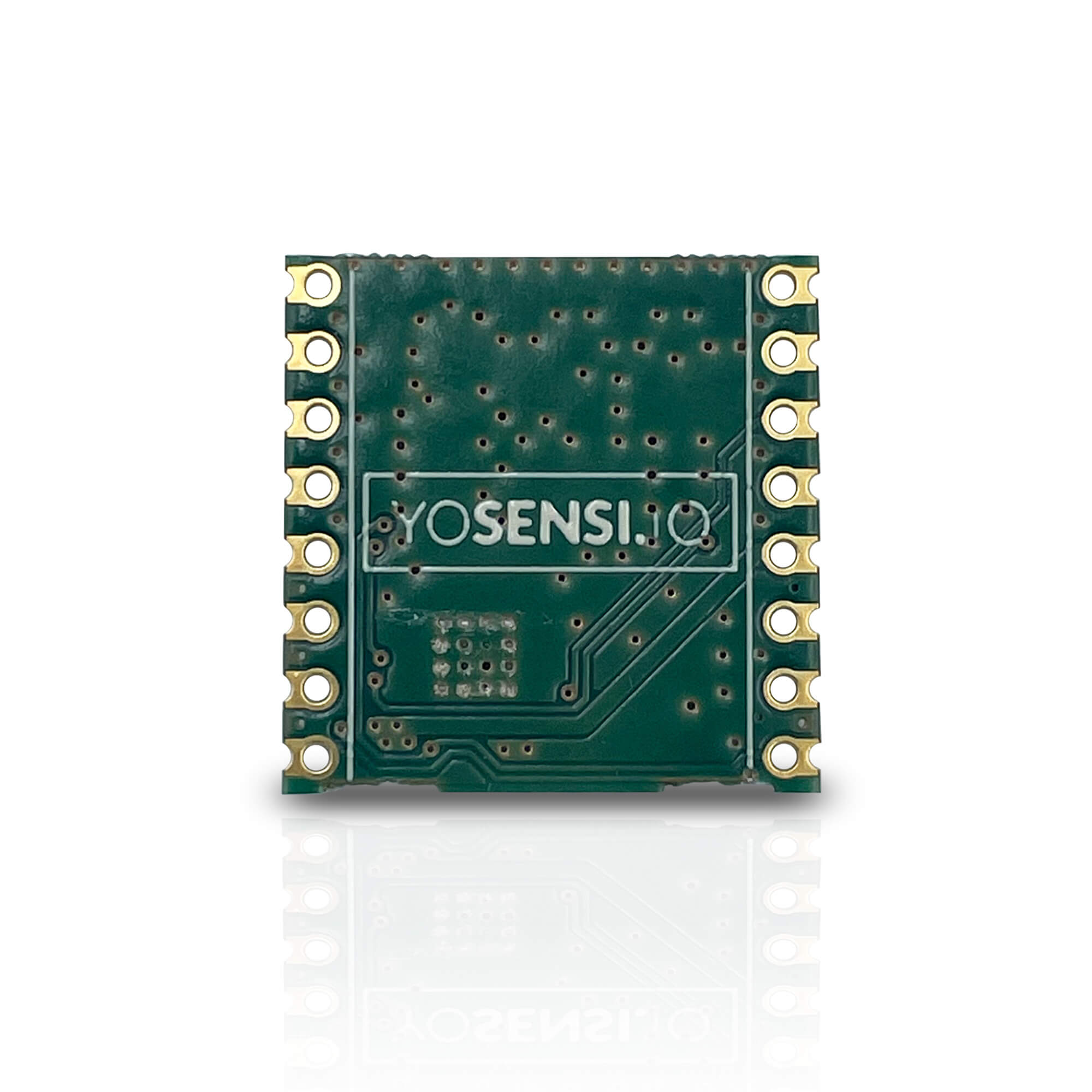

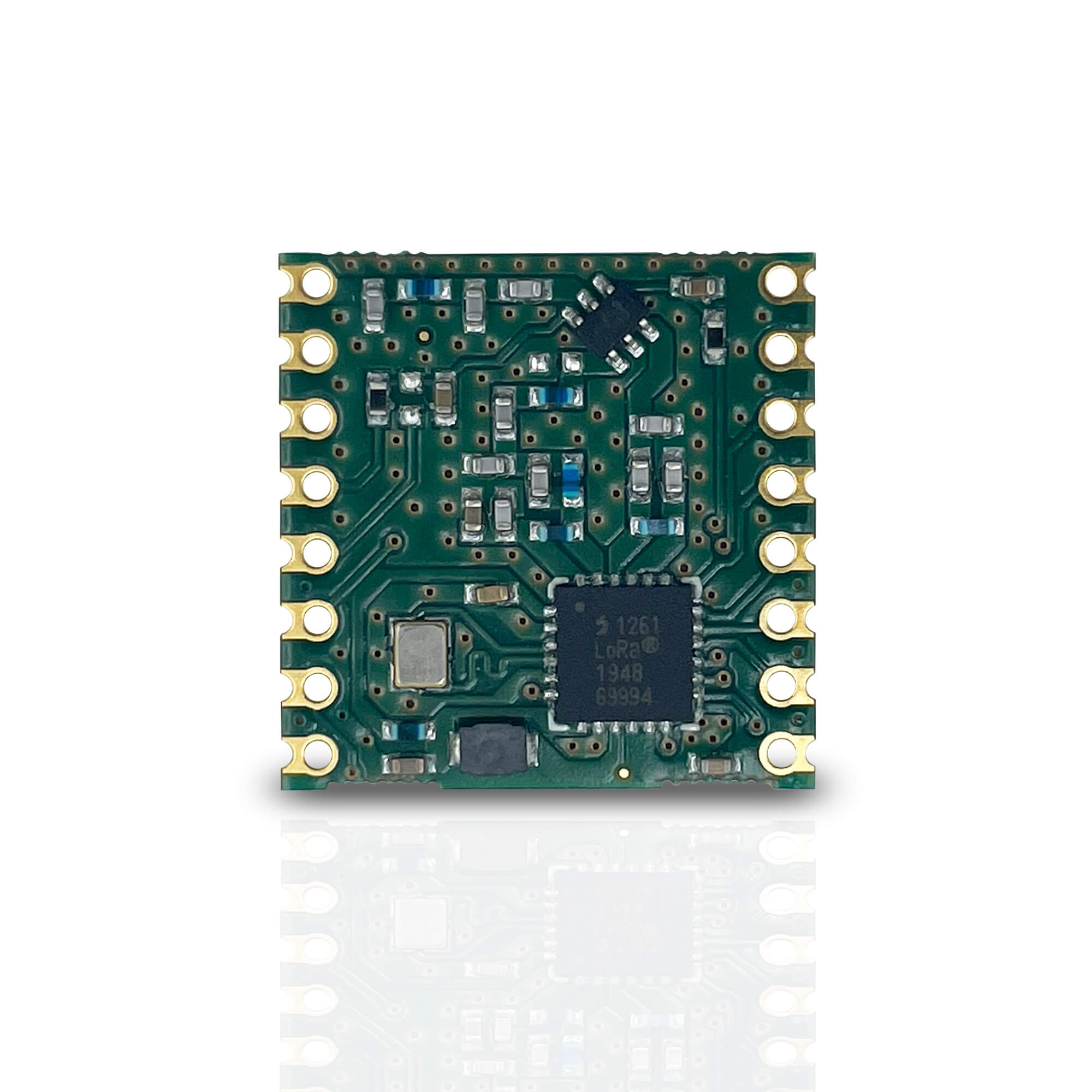

YO LoRadio is a radio module adapted to work on ISM frequencies in all regions: EU868, AU915, AS923, US915. The Semtech systems SX1261 (868 MHz) or SX1262 (915 MHz) that are used in it have very low power consumption, which allows the whole device to be energy efficient while maintaining power parameters of the receiver and transmitter. The board is mounted with 16 edge pads, 8 on each side. The YO Radio's dimensions are 16x16 mm, the same as another popular RFM95W on the market.

Key features

  • All ISM regions supported: EU868, AU915, AS923, US915
  • Chip Semtech SX1261 (868 MHz), SX1262 (915 MHz)
  • Universal PCB dimension: 16x16 mm
  • Low energy consumption
  • High-quality product made in EU
