Products > YO Temp

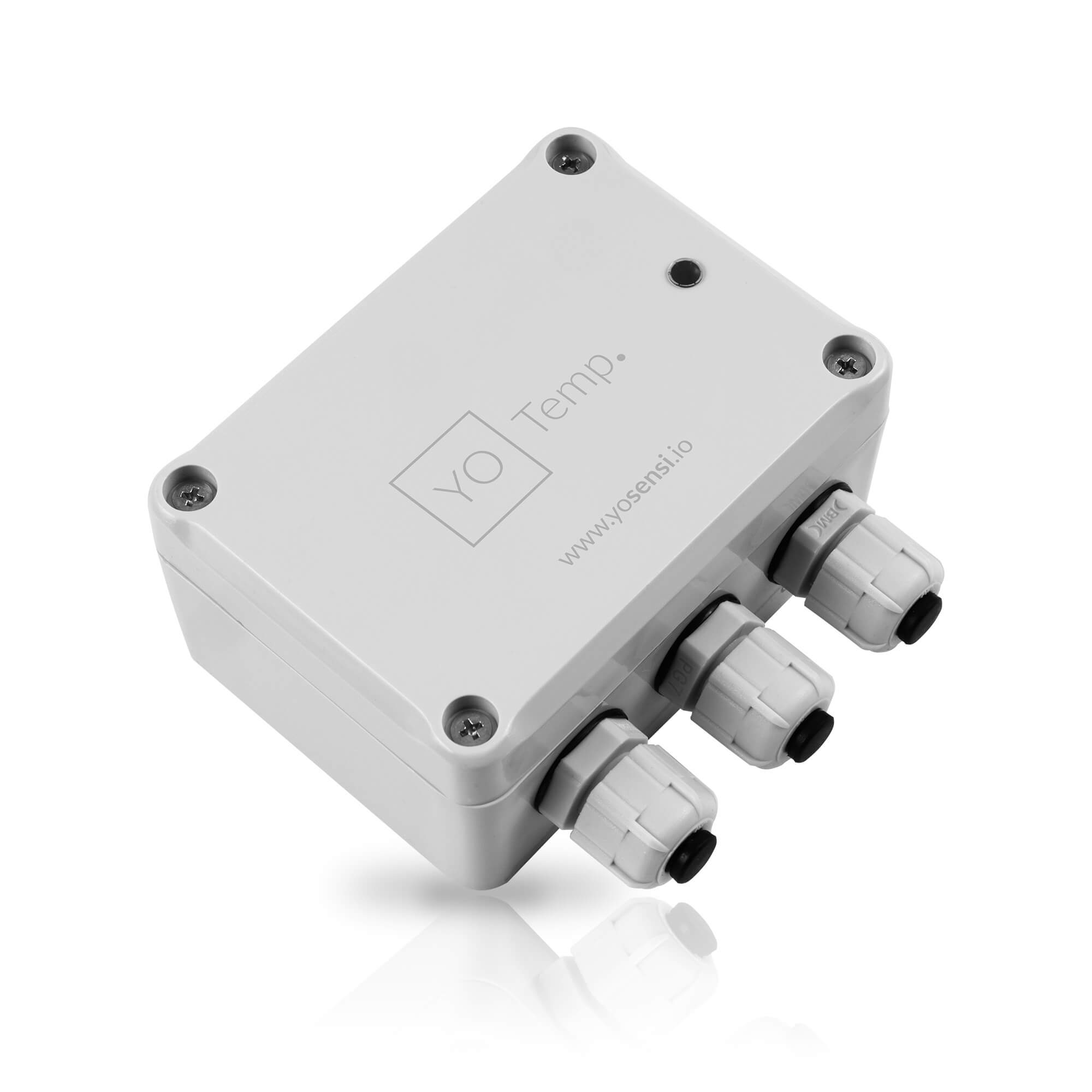

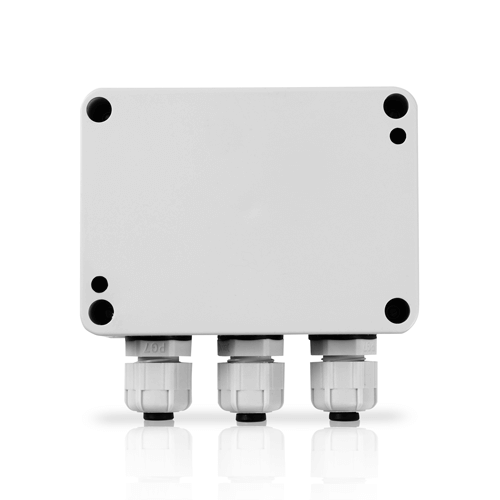

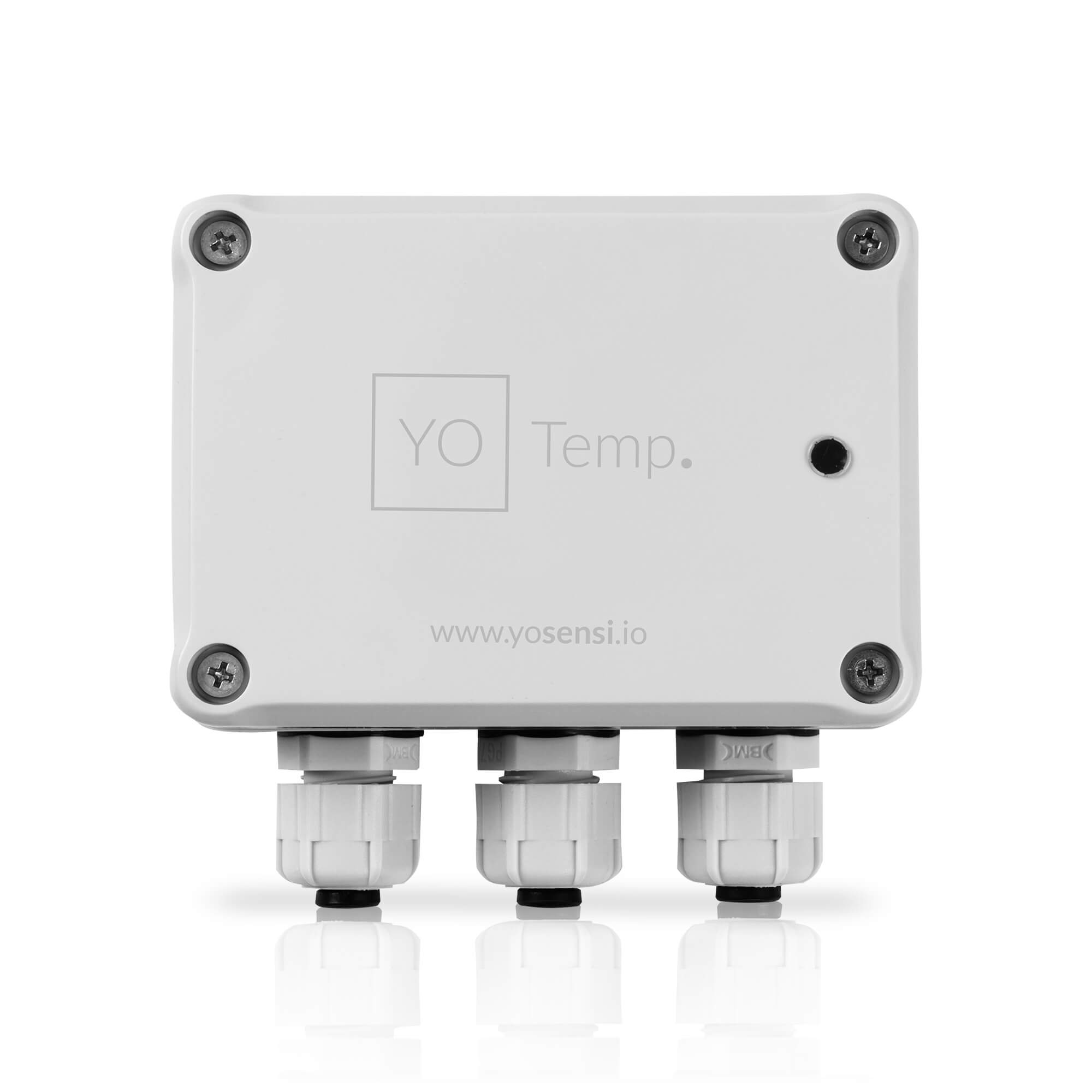

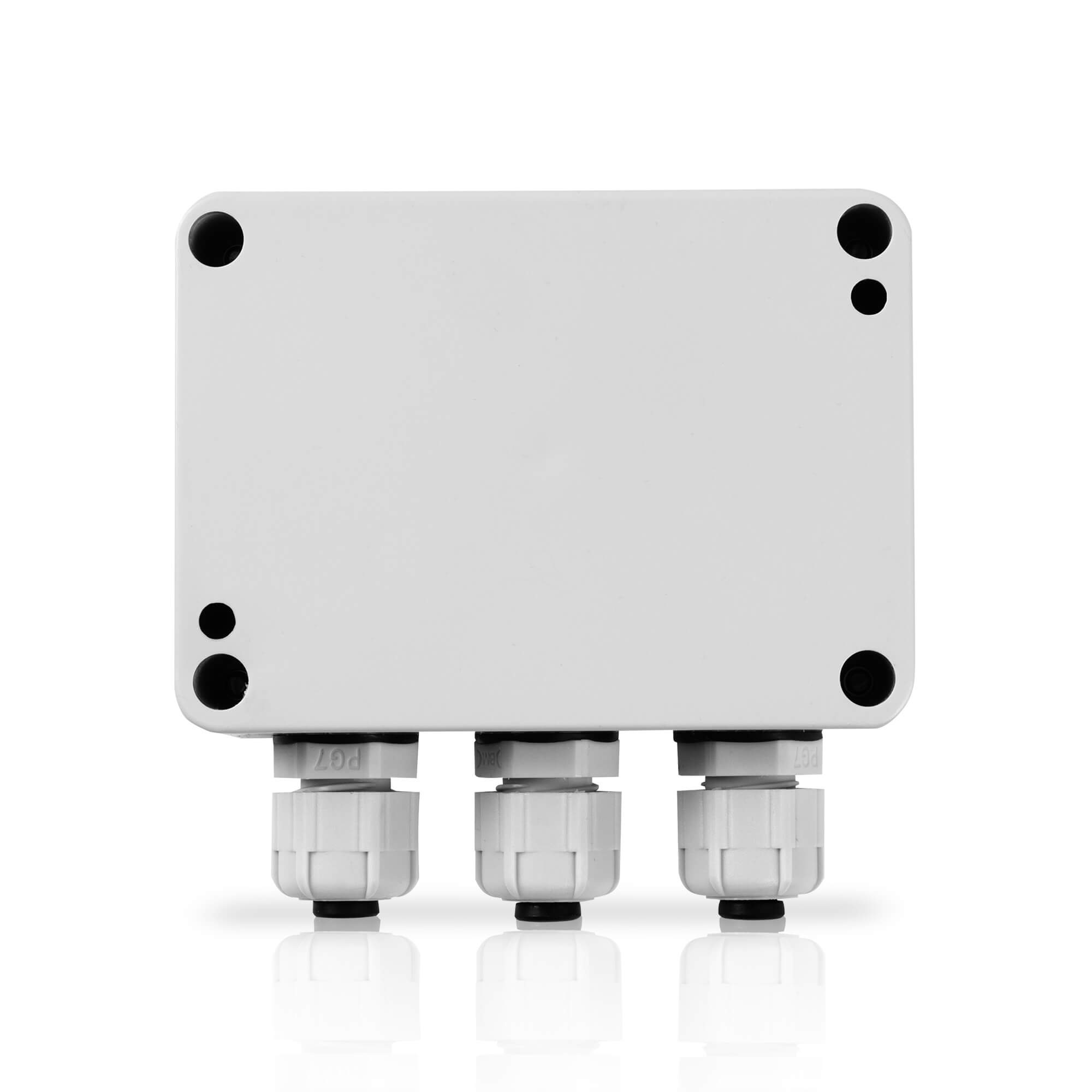

YO Temp
LoRaWAN
Enclosure type • IP67
Band • EU868, US915, AU915, AS923
Colors
light grey
Additional probes • Temperature sensors for outdoor use with various cable lengths (1 m, 2 m, 3 m, 5 m, 10 m, 15 m and 20 m)
Certificate CE
quote request

Description

YO Temp measures the temperature at up to three external locations.

Additionally, the device contains internal sensors measuring temperature and humidity. YO Temp features a IP67 protected enclosure and battery power supply.

No temperature probes are attached to the device. Our range includes temperature sensors designed for outdoor use with various cable lengths (1 m, 2 m, 3 m, 5 m, 10 m, 15 m and 20 m). The sensors are equipped with silicone coverings and stainless steel enclosures, resistant to solvents including oil and alcohol. The sensors operate at temperatures ranging from -55°C to 125°C.

YO Temp operates over LoRaWAN. We are a member of the LoRa Alliance, which is responsible for data transmission security.

Key features

  • Battery-powered device
  • Possibility of connecting three temperature probes
  • IP67 protected enclosure
  • Supported LoRaWAN network type: private or public and connection over ABP or OTAA
  • ISM band selectable for regional needs (EU868, US915, AU915, and AS923)
  • Configuration via Bluetooth Low Energy 5.0
  • Firmware update over BLE
  • Yosensi Configuration Web Tool for convenient firmware updates and device configuration
  • Wide network coverage and very low energy consumption
  • High-quality product made in EU

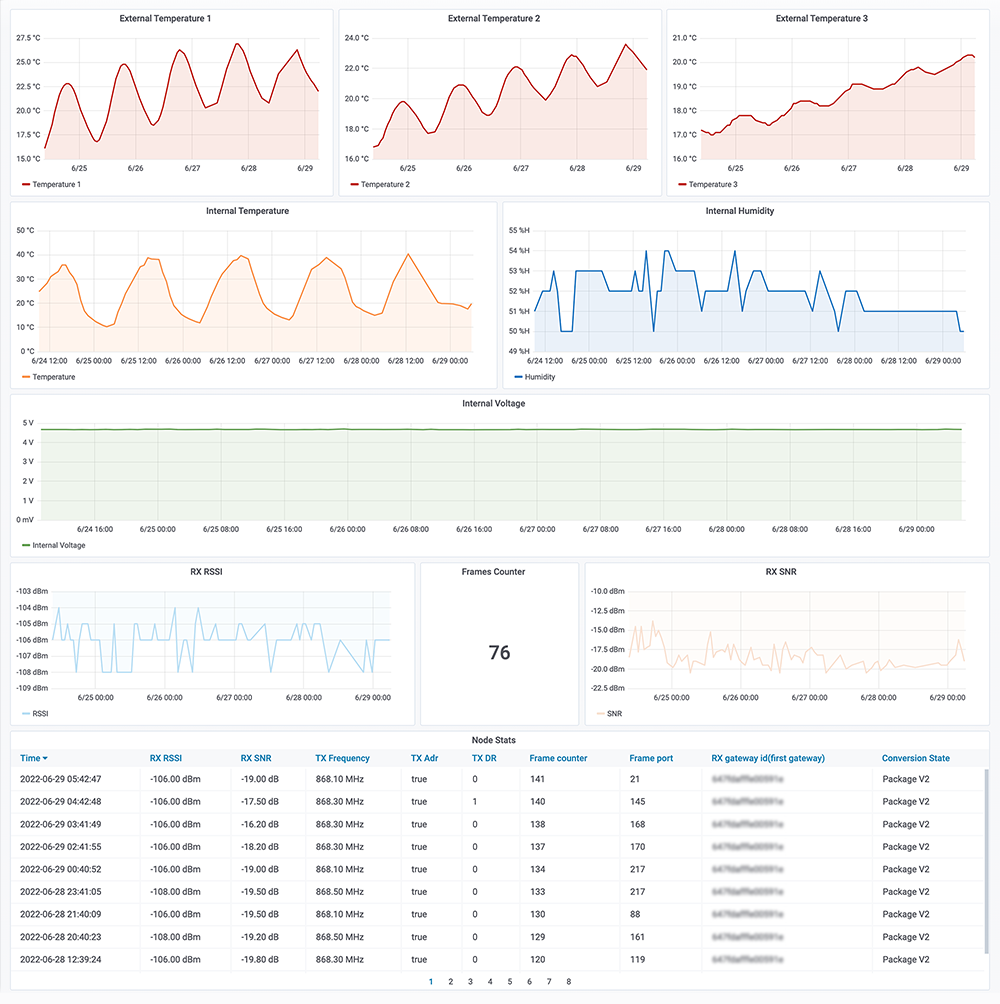

Sample charts of collected data

charts

Parameters

Tx Power: • LoRa EU868: to +14 [dBm]
• LoRa US915, AU915, AS923: to +22 [dBm]
• Bluetooth Low Energy (BLE): -20 to +6 [dBm]
Power supply: • 3 x AA battery (3 x 1,5 V)
Power consumption: • Maximum: 120mA DC (4,5 V DC)
Weight: • 134 g (without batteries)
• 204 g (with batteries)
Certificates: CE

Enclosure

Dimensions: • Height: 42 mm
• Width: 88 mm
• Depth: 64 mm
Colour: Light grey (RAL 7035)
Installation: Select between:
  • Horizontal
  • Vertical (can be screwed to the wall)
Enclosure material: ABS
Level of protection: IP67
64 mm88 mm 42 mm

Sensors measuring range

External temperature:

Measurement range: from -55°C to 125°C (-67°F to 257°F)
Accuracy: ±0.5°C (32.9°F) (in temperatures from -10°C to 85°C (14°F to 185°F))

Temperature:

Measurement range: from -40°C to 125°C (-40°F to 257°F)
Accuracy: ±0.2°C (32.36°F) (in temperatures from 5°C to 60°C (41°F to 140°F))

Relative Humidity:

Measurement range: from 0% to 100%
Accuracy: ±2% (relative humidity from 20% to 80%)

Additional Probes

Power: 3,3 V - 5 V
Measuring range: -55°C - 125°C (-67°F to 257°F)
Accuracy: ± 0.5 (-10°C to +85°C) (14°F to 185°F), ± 2 (-55°C to +125°C) (-67°F to 257°F)
Protective enclosure dimensions: 6 mm x 15 mm
Cable lengths: 1 m, 2 m, 3 m, 5 m, 10 m, 15 m, 20 m
